Ready System
Office compound: boundary alerts only for people and vehicles
- Brand
- Urban Eye Security
- Part number
- PKG-COMM-16CAM-AI
System at a glance
| Cameras | 12 x VIGI C240 domes, 4 x InSight S445 AI turrets |
|---|---|
| Recorder | NVR2016H-16P, 16 of 16 channels used |
| PoE load | 10 domes up to 60W of the recorder's 90W; 4 InSight cameras and 2 domes up to 60W of the switch's 123W |
| Storage | 2 x 4TB drives, 8TB (up to 16TB per bay) |
| Retention estimate | about 10 days of continuous recording, or about 20 days recording on motion at a busy site |
| You still need | Cat6 cabling, a rack or wall cabinet, a monitor for local viewing |
What the kit includes

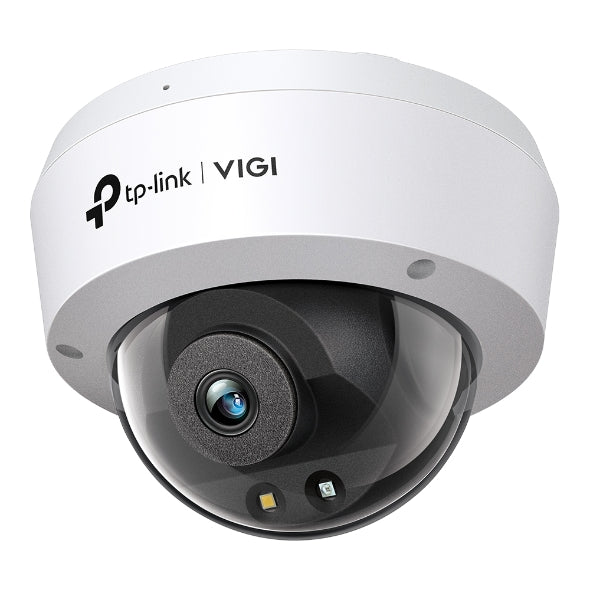

- ✓ 12x VIGI C240 4MP full-colour dome cameras
- ✓ 4x VIGI InSight S445 AI-detection cameras
- ✓ 1x VIGI NVR2016H-16P 16-channel PoE+ recorder, 90W PoE budget
- ✓ 2x 4TB surveillance hard drives
- ✓ 1x TL-SG1210MP 8-port PoE+ switch, 123W budget
- ✓ Manufacturer warranty and Urban Eye local support
Not included
Listed here so it does not appear as an extra cost later.
- ✕ Installation and commissioning
- ✕ Omada ER7206 router and Wi-Fi access points (optional add-ons, quoted per site)
- ✕ Cabling, mounting hardware and connectors (quoted per site)
- ✕ Rack or wall cabinet
- ✕ Elevated-access labour
- ✕ Conduit, trunking or trenching
Choose this when
- ✓ Office buildings and compounds with 13 to 16 camera positions
- ✓ You want an audible and light deterrent at the boundary
- ✓ You want people and vehicle alerts rather than every movement
Look elsewhere when
- ✕ You expect to add cameras later: all 16 channels are used
- ✕ Positions need 4K detail for evidence: see the 32-camera 4K kit
- ✕ There is no cabling route from the camera positions to one recorder location
Power backup
A power cut is the most common reason a system stops recording. At full load, with every camera at its maximum draw and the recorder writing to its drives, this kit draws about 175 W. This is what it takes to keep it recording through an outage.
| Backup time | Battery energy | Lead acid, 12V 100Ah | Lithium, 12.8V 100Ah |
|---|---|---|---|
| 4 hours | 824 Wh | 2 batteries | 1 battery |
| 8 hours | 1648 Wh | 3 batteries | 2 batteries |
UPS or inverter rated at least 650 VA. Estimates assume 85% inverter efficiency, lead acid used to 50% of capacity and lithium to 80%. Real draw is usually lower, because camera illuminators only run at night. We size the backup for your site on the quote, and it is quoted as an add-on.
Work out a different backup timeSend this to your client
A summary of the scope without prices or a link back to us, so you can share it and keep your own pricing.
Why this kit is built this way
System objective: covers an office building and its compound, with analytics that separate people and vehicles from everything else and active deterrence at the boundary.
Why this configuration
- Alerts worth reading. Human and vehicle classification distinguishes people and vehicles from other moving objects, so the notifications that reach your phone are the ones that matter.
- The perimeter answers back. The four InSight cameras carry speakers and white light, so a boundary breach triggers an audible warning and a strobe rather than a silent recording.
- Power sized properly. Ten of the C240 domes run from the recorder, drawing up to 60 watts of its 90 watt PoE budget and leaving a third spare. The four InSight cameras, at up to 12 watts each, and the other two domes run from a separate 8-port PoE+ switch: up to 60 watts of its 123 watt budget, with two ports free.
Storage, worked out in advance. The two 4TB drives hold about 10 days of continuous recording, or about 20 days recording on motion at a busy site, estimated with conservative bitrates at H.265+ and confirmed for your site on the quote.
What the kit includes
| 12x | VIGI C240 4MP full-colour dome cameras, IP67, IK10 vandal-proof |
| 4x | VIGI InSight S445 4MP AI cameras, perimeter positions |
| 1x | VIGI NVR2016H-16P 16-channel PoE+ recorder, 90W PoE budget |
| 2x | 4TB surveillance hard drives (the recorder takes up to 16TB per bay) |
| 1x | TL-SG1210MP 10-port switch with 8 PoE+ ports, 123W budget |
Optional add-ons, quoted per site
- Omada ER7206 multi-WAN VPN router
- Omada EAP670 Wi-Fi 6 access points
- Rack or wall cabinet, cabling and mounting hardware
Placement is flexible in this kit. The twelve C240 domes are IP67-rated, so the interior and perimeter split here is about coverage and analytics, not weatherproofing. Put domes wherever detail matters most and keep the InSight units on the boundary where the speaker and light deterrent counts.
Hardware bundle only. Installation and site survey quoted separately.
