Ready System
Shop with one till: see who took what at the counter and the door
- Brand
- Urban Eye Security
- Part number
- PKG-VIGI-4CAM
System at a glance
| Cameras | 4 x VIGI C240 4MP full-colour domes |
|---|---|
| Recorder | NVR1104H-4P, 4 of 4 channels used |
| PoE load | up to 24W of the recorder's 53W budget |
| Storage | 2TB surveillance drive (up to 10TB) |
| Retention estimate | about 10 days of continuous recording, or about 20 days recording on motion at a busy site |
| You still need | Cat6 cable and connectors, a monitor for local viewing |
What the kit includes

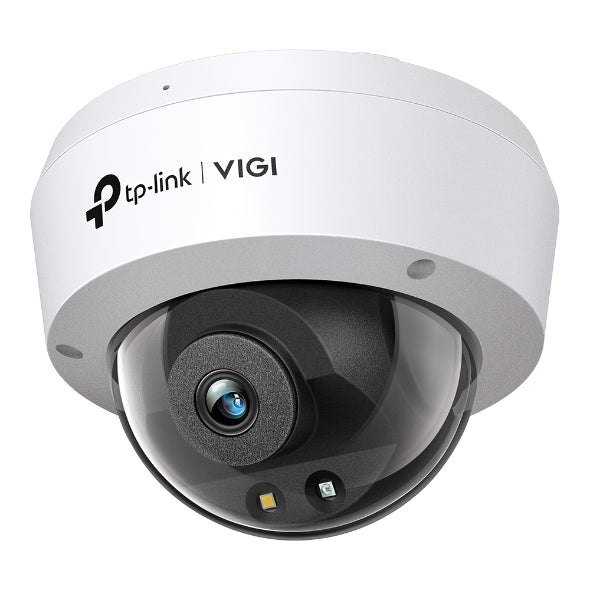

- ✓ 4x VIGI C240 4MP full-colour dome cameras, IP67
- ✓ 1x VIGI NVR1104H-4P 4-channel PoE+ recorder, 53W PoE budget
- ✓ 1x 2TB surveillance-grade hard drive
- ✓ Manufacturer warranty and Urban Eye local support
Not included
Listed here so it does not appear as an extra cost later.
- ✕ Installation and commissioning
- ✕ Network router and Wi-Fi access point (optional add-ons, quoted per site)
- ✕ Cat6 cabling, connectors and mounting hardware (quoted per site)
- ✕ Conduit, trunking or trenching
- ✕ Rack or wall cabinet
- ✕ Elevated-access labour
Choose this when
- ✓ One shop, office or entrance with up to four camera positions
- ✓ You want full colour at night without adding lighting
- ✓ Every camera can be cabled back to one recorder location within 100 metres
Look elsewhere when
- ✕ You need more than four cameras now or soon: choose an 8 or 16 channel recorder
- ✕ There is no power or network at the camera positions: see the off-grid 4G kit
- ✕ You only want app viewing without a recorder: see the Wi-Fi DIY kit
Power backup
A power cut is the most common reason a system stops recording. At full load, with every camera at its maximum draw and the recorder writing to its drives, this kit draws about 40 W. This is what it takes to keep it recording through an outage.
| Backup time | Battery energy | Lead acid, 12V 100Ah | Lithium, 12.8V 100Ah |
|---|---|---|---|
| 4 hours | 189 Wh | 1 battery | 1 battery |
| 8 hours | 377 Wh | 1 battery | 1 battery |
UPS or inverter rated at least 650 VA. Estimates assume 85% inverter efficiency, lead acid used to 50% of capacity and lithium to 80%. Real draw is usually lower, because camera illuminators only run at night. We size the backup for your site on the quote, and it is quoted as an add-on.
Work out a different backup timeSend this to your client
A summary of the scope without prices or a link back to us, so you can share it and keep your own pricing.
Why this kit is built this way
System objective: covers checkout registers, aisles and entrances in full colour around the clock.
Why this configuration
- Colour at night, not grey shapes. F1.6 lenses with supplemental white light reaching 30 metres, so you get a face and a shirt colour rather than a silhouette.
- No subscription. A 2TB surveillance drive records locally and holds about 10 days of continuous recording, or about 20 days recording on motion at a busy site, estimated with conservative bitrates at H.265+ and confirmed for your site on the quote. The recorder takes a drive of up to 10TB if you need longer.
- Power with room to spare. Each C240 draws up to 6 watts, 24 watts for all four, well inside the recorder's 53 watt PoE budget.
What the kit includes
| 4x | VIGI C240 4MP full-colour dome cameras, IK10 vandal-proof, IP67 weatherproof |
| 1x | VIGI NVR1104H-4P 4-channel PoE+ recorder, 53W PoE budget |
| 1x | 2TB surveillance-grade hard drive (WD Purple or SkyHawk) |
Optional add-ons, quoted per site
- Omada ER605 multi-WAN failover router
- Omada EAP650 AX3000 Wi-Fi 6 ceiling access point
- Cat6 cable, RJ45 connectors and patch leads
One placement note: the C240 is IP67-rated and IK10 vandal-resistant, so every camera in this kit can go outside as well as in. Mount by coverage and sightline, not by a weatherproofing limit.
Hardware bundle only. Installation and site survey quoted separately.
