Access Control

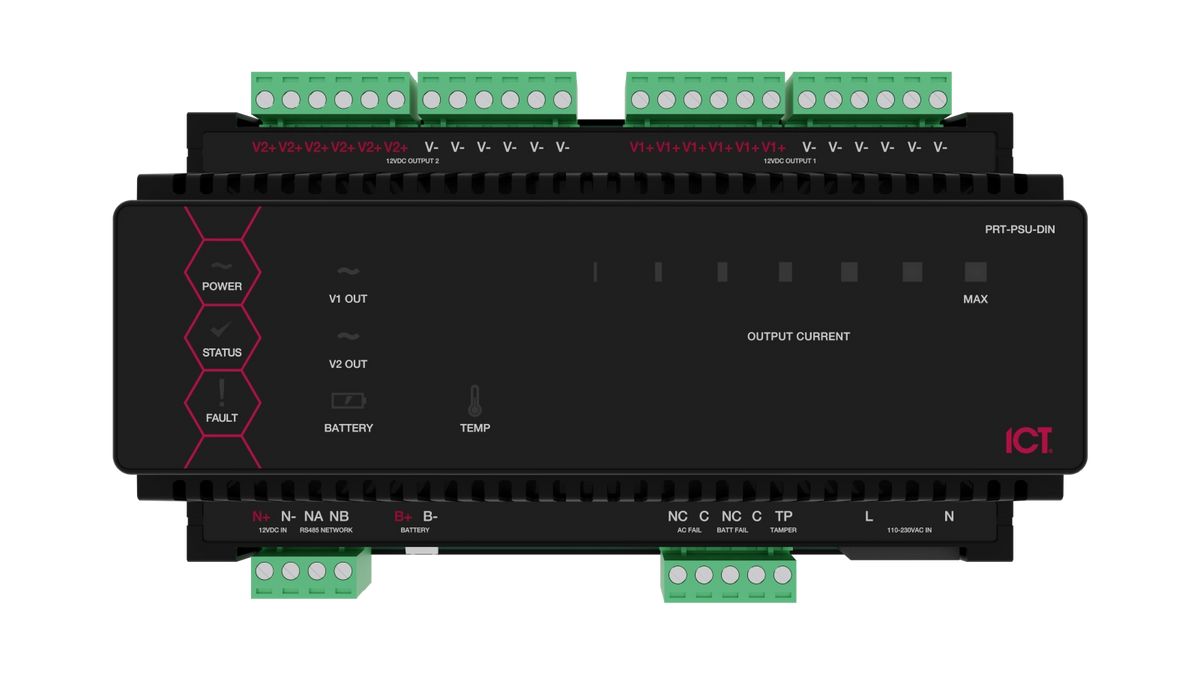

ICT Protege DIN Rail 12V 4A Intelligent Power Supply
- Brand
- ICT
- Model
- PRT-PSU-DIN-4A
- Part number
- PRT-PSU-DIN-4A
- Availability
- Ordered on demand
- Datasheet
- Manufacturer specifications ↗
Powering a Protege controller, expanders and readers with battery backup
Request a quoteSpecifications
| Output | 12V DC, 4A continuous |
|---|---|
| Input | Mains |
| Battery | Sealed lead acid (VRLA), 7Ah minimum recommended, replace every 3–5 years |
| Battery management | Processor-controlled testing and intelligent charging |
| Outputs | 2 Form B relays for status or programmable use |
| Monitoring | AC failure and battery failure reported to the system |
| Mounting | DIN rail, indoors |
What this is for
The 12V supply for a Protege controller and its modules, with battery backup so the doors and the alarm keep running through a power cut. It tests the battery itself and reports AC failure and battery faults to the system, so a flat battery is found by the system rather than during an outage.
It takes mains input directly. The backup battery is separate: we recommend at least a 7Ah sealed lead acid battery, replaced every three to five years.
What you also need
This item is part of a system. A working installation needs each of these.
- ✓ A 12V sealed lead acid battery, 7Ah or larger
- ✓ A mains connection inside the enclosure
- ✓ A DIN rail enclosure with space for the supply and battery
- ✓ A separate supply for the locks where the door count needs more than 4A
