Home / Products/ ICT Protege DIN Rail 2-Door Reader Expander

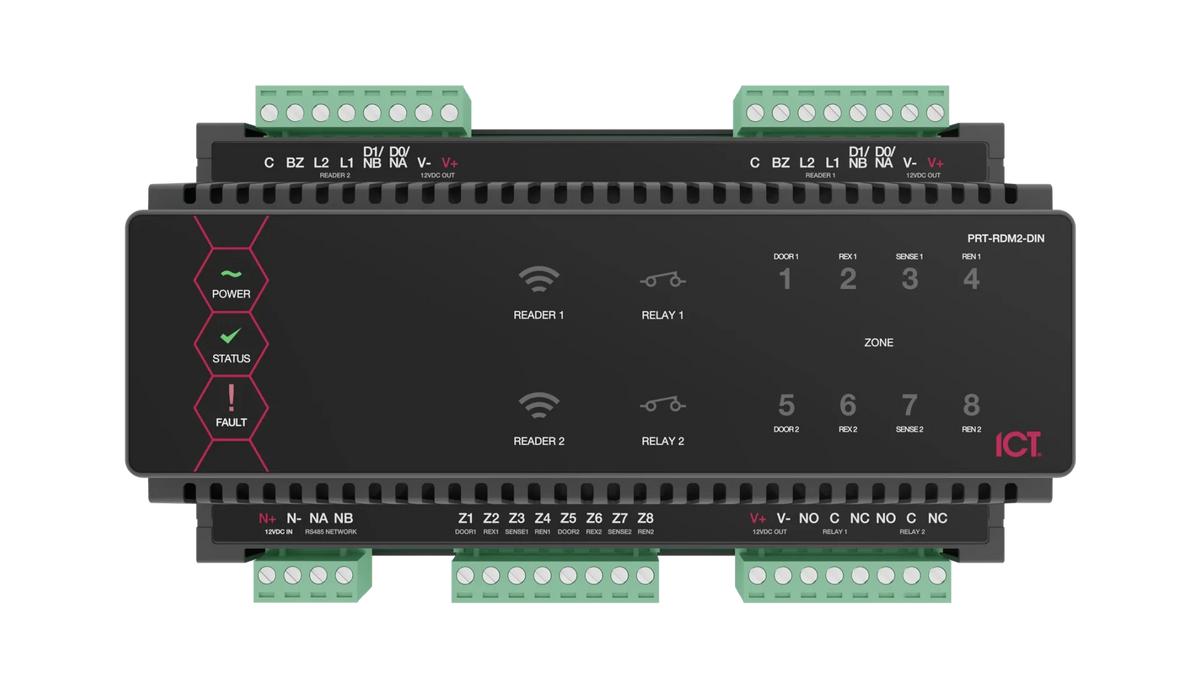

ICT Protege DIN rail 2-door reader expander, front

Access Control

ICT Protege DIN Rail 2-Door Reader Expander

Brand
ICT
Model
PRT-RDM2-DIN-485
Part number
PRT-RDM2-DIN-485
Availability
Ordered on demand

Adding doors to an existing Protege WX controller

Request a quote

Specifications

Doors 2 (4 readers)
Reader ports 2, each Wiegand or RS-485, OSDP supported
Inputs 8 multi-purpose
Outputs 2 Form C relays, 6 low current outputs
Offline operation All users, first 10 users plus 150 card cache, or none
Supply 11–14V DC, 80mA typical, 1.56A total combined maximum
Mounting DIN rail, indoors

What this is for

Adds two more controlled doors to a Protege controller. Each of its two reader ports can run Wiegand, RS-485 or OSDP, so it takes current encrypted readers and older Wiegand readers on the same site.

If communication with the controller is lost, it keeps making access decisions offline for all users, the first ten users plus a card cache, or no users, depending on how it is configured.

What you also need

This item is part of a system. A working installation needs each of these.

  • ✓ A Protege WX controller on the same RS-485 module network
  • ✓ 12V DC from a Protege DIN rail power supply
  • ✓ Readers, locks, door contacts and exit buttons for the two doors
  • ✓ Space in a DIN rail enclosure
