Home / Products/ ICT Protege DIN Rail 8 Input Expander

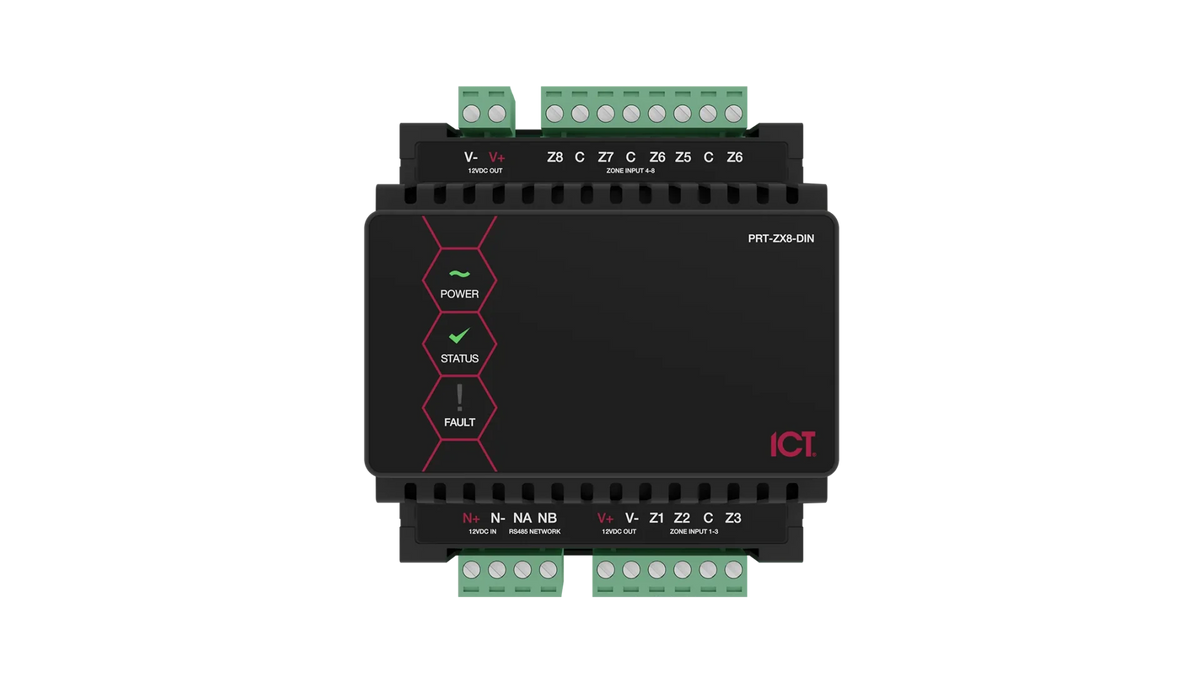

ICT Protege DIN rail 8 input expander, front

Access Control

ICT Protege DIN Rail 8 Input Expander

Brand
ICT
Model
PRT-ZX8-DIN
Part number
PRT-ZX8-DIN
Availability
Ordered on demand

Wired detectors, door contacts and plant room alarms on a Protege system

Request a quote

Specifications

Inputs 8 monitored, 16 in input duplex mode
Input states Short, alarm, closed and tamper
Input speed Programmable, 10ms to 1 hour
Network Isolated RS-485 module network
Supply 11–14V DC, 50mA typical
Operating temperature -10°C to 55°C (EN)
Dimensions 78.4 x 90 x 44.1mm
Weight 160g

What this is for

Adds eight monitored inputs to a Protege system, or sixteen in input duplex mode, for detectors, door contacts and plant alarms. Each input can report short, alarm, closed and tamper, so a cut or bridged cable raises an alarm rather than going unnoticed.

What you also need

This item is part of a system. A working installation needs each of these.

  • ✓ A Protege WX controller on the same RS-485 module network
  • ✓ 12V DC from a Protege DIN rail power supply
  • ✓ End-of-line resistors for monitored inputs
  • ✓ Space in a DIN rail enclosure
