Camera - Pan/Tilt 4G

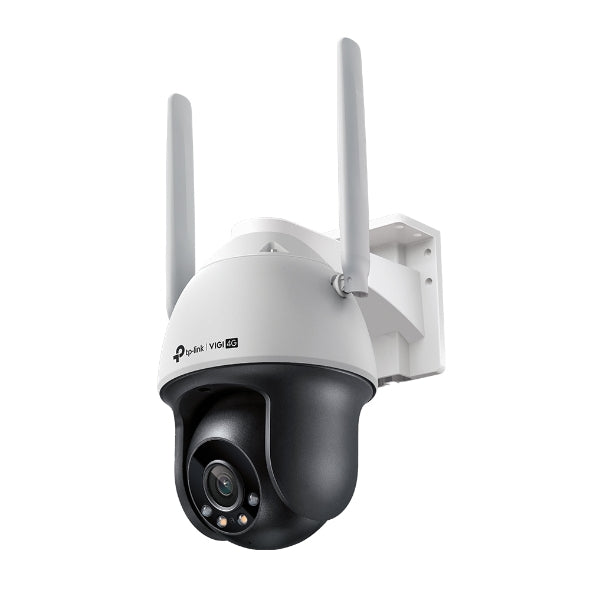

TP-Link VIGI C540-4G 4MP Outdoor 4G Pan/Tilt Camera
- Brand
- TP-Link
- Model
- C540-4G
- Part number
- VIGI-C540-4G
- Availability
- Ordered on demand
- Datasheet
- Manufacturer specifications ↗
Lens
This choice changes the specification and cannot be changed after ordering. Tell us which you need when you enquire.
Specifications
| Resolution | 4MP (2560x1440) |
|---|---|
| Lens | 4mm fixed, F1.6 |
| Cellular | 4G LTE, Nano SIM (LTE-FDD B1/3/5/7/8/20/28; LTE-TDD B38/40/41) |
| Pan and tilt | Pan 0° to 348°, tilt 0° to 120° |
| Night vision | Full colour, white light and IR up to 30m |
| Tracking | Automatic human and vehicle tracking |
| Alarm | Strobe and siren |
| Power | 12V DC 1A adapter |
| Protection | IP66 |
| Operating temperature | -30°C to 60°C |
| Audio | Built-in microphone and speaker, two-way |
| Storage | microSD up to 512GB |
What this is for
Puts a full pan and tilt camera on a site with no fixed internet at all. Insert a local nano SIM and it streams 2560 x 1440 to your phone over 4G, panning 348 degrees and tilting 120 to track someone across the compound, with an audible warning and white light response when a boundary is crossed.
IP66 rated with microSD up to 512GB. Two things to plan for: it has no PoE and runs from a 12V DC supply at the mounting point, and its cellular bands are region specific, so confirm the SKU matches Kenyan networks before ordering.
For farms, ranches, construction sites and remote gates. Pairs with the VIGI SP6030 solar supply where there is no mains power either.
In the box
- ✓ Camera unit
- ✓ Mounting bracket and fixing set
- ✓ Waterproof cable gland
- ✓ Quick-start guide
Not included
Listed here so it does not appear as an extra cost later.
- ✕ 4G SIM card and data plan
- ✕ MicroSD memory card
- ✕ Power supply or solar system
- ✕ Pole or mast
- ✕ Professional installation
Compatibility
Runs standalone over 4G, no NVR or fixed internet needed. Requires an active local SIM with a data plan and a MicroSD card for onboard recording. Pairs with the VIGI SP6030 solar system for fully off-grid sites.
