Camera - Pan/Tilt

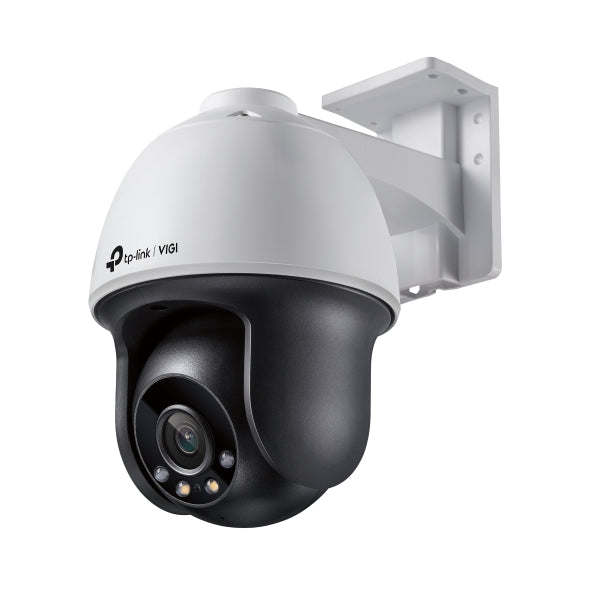

VIGI C540 - 4MP Outdoor Full-Color Pan Tilt Network Camera
- Brand
- TP-Link
- Model
- C540
- Part number
- VIGI-C540
- Max power draw
- 16.0 W
- Availability
- Ordered on demand
- Datasheet
- Manufacturer specifications ↗
Configuration
This choice changes the specification and cannot be changed after ordering. Tell us which you need when you enquire.
Large parking lots, perimeter security, active monitoring zones
Request a quoteSpecifications
| Resolution | 4MP (2560x1440) |
|---|---|
| Lens | 4mm fixed |
| Pan and tilt | Pan 0° to 350°, tilt 0° to 120° |
| Night vision | Full colour, white light and IR up to 30m |
| Smart features | Automatic Tracking, Human & Vehicle Classification, Smart Detection |
| Power | PoE+ 802.3at class 4 max 16W; 12V DC max 14W |
| Protection | IP66 |
| Operating temperature | -30°C to 60°C |
| Audio | Built-in microphone and speaker, two-way |
| Storage | microSD up to 512GB |
| Compression | H.265+ |
What this is for
One motorised camera covering ground that would otherwise need several fixed units, panning through 350 degrees and tilting through 120 to follow a person or vehicle across the whole area. Records 2560 x 1440 with two-way audio and full colour night vision, IP66 rated for exterior mounting, with microSD up to 512GB.
The specification that decides your installation: this camera requires 802.3at PoE at Class 4 and draws up to 16 watts. It will not power up from an 802.3af switch or injector. Eight of them alone consume a 140 watt recorder, so check the budget before you order, or run it from a 12V DC supply instead at 14 watts.
Suited to parking areas, school grounds, hotel forecourts and yards where the threat can come from any direction. 4mm lens at 79 degrees.
What you also need
This item is part of a system. A working installation needs each of these.
- ✓ A PoE+ (802.3at) port on a VIGI PoE recorder or PoE+ switch; an 802.3af-only port will not power this camera
- ✓ Cat6 cable, up to 100 metres per run
- ✓ A free recorder channel, with at least 16W of PoE budget left
