Camera - Turret

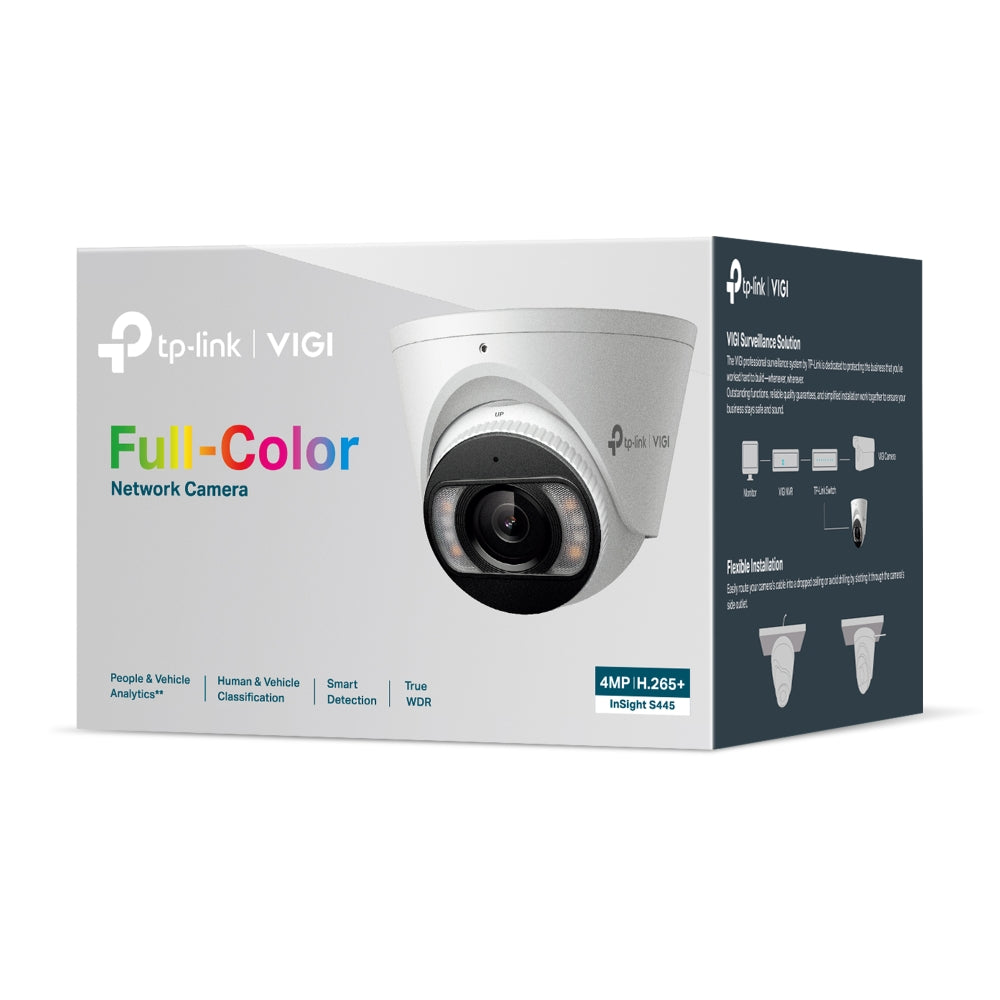

TP-Link VIGI InSight S445 4MP Full-Color AI Turret Camera
- Brand
- TP-Link
- Model
- S445
- Part number
- VIGI-S445-2.8
- Max power draw
- 12.0 W
- Availability
- Ordered on demand
- Datasheet
- Manufacturer specifications ↗
Lens
This choice changes the specification and cannot be changed after ordering. Tell us which you need when you enquire.
Specifications
| Resolution | 4MP (2688x1520) |
|---|---|
| Lens options | 2.8mm, 4mm |
| Night vision | Full colour, 4 white and 4 IR LEDs, up to 30m |
| AI | Deep Learning Human and Vehicle Classification |
| Active defence | Sound and light alarm |
| Power | PoE 802.3af/at max 12W; 12V DC max 11W |
| Protection | IP67 |
| Operating temperature | -30°C to 60°C |
| Audio | Built-in microphone and speaker, two-way |
| Storage | microSD up to 512GB |
| Compression | H.265+ |
What this is for
Four white LEDs and four infrared LEDs reaching 30 metres, with an F1.6 aperture holding full colour down to 0.005 lux. Human and vehicle classification distinguishes people and vehicles from other moving objects, so the alerts you receive are the ones worth reading, and the camera answers an intrusion itself with an audible warning and a flashing white light through its built-in speaker.
Records 2688 x 1520 and is IP67 rated, with a microSD slot up to 512GB and a full smart event set: line crossing, area intrusion, region entry and exit, loitering, object abandoned and removed, abnormal sound and scene change. Attribute-based search across people and vehicles is available but requires VIGI software rather than working from the camera alone. Draws up to 12 watts over PoE, so four fill a 53 watt recorder budget and eleven fill a 140 watt one. Choose 2.8mm at 100 degrees or 4mm at 80.4 degrees.
What you also need
This item is part of a system. A working installation needs each of these.
- ✓ A PoE port on a VIGI recorder or an 802.3af/at PoE switch
- ✓ Cat6 cable, up to 100 metres per run
- ✓ A free recorder channel, with at least 12W of PoE budget left
