Network Video Recorder PoE+

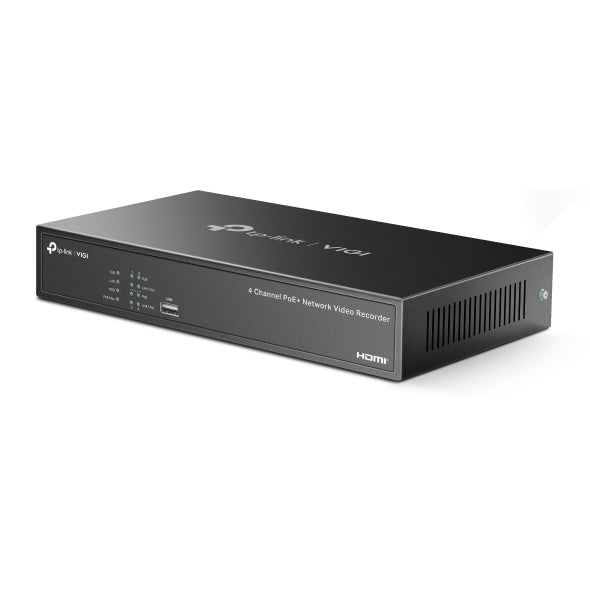

VIGI NVR1004H-4P - 4 Channel PoE+ Network Video Recorder
- Brand
- TP-Link
- Model
- NVR1004H-4P
- Part number
- VIGI-NVR1004H-4P-NOHDD
- Availability
- Ordered on demand
- Datasheet
- Manufacturer specifications ↗
Storage
This choice changes the specification and cannot be changed after ordering. Tell us which you need when you enquire.
Small businesses, branch offices, easy deployment locations
Request a quoteSpecifications
| Channels | 4 |
|---|---|
| Incoming bandwidth | 80 Mbps |
| Outgoing bandwidth | 60 Mbps |
| PoE | 4x 10/100 Mbps PoE+ ports, 802.3af/at, 53W total, 30W max per port |
| HDMI | 4K |
| Decoding | 2-ch@8MP (25fps) or 4-ch@4MP (30fps) |
| Storage | 1 SATA bay, up to 10TB |
| Compression | H.265+/H.265/H.264+/H.264 |
| Features | ONVIF compatible |
What this is for
Four PoE+ ports on a 53 watt budget, so cameras plug straight into the back on one cable each and are detected and powered automatically. No injectors, no separate switch, no power supplies at the camera end. Records up to 8MP per channel with 4K output over HDMI.
Three limits to plan around. A single drive bay taking up to 10TB, so no redundancy and a hard storage ceiling. The uplink and the PoE ports all run at 10/100 Mbps rather than gigabit, and with 60 Mbps of outgoing bandwidth several people viewing remotely at once will feel it. And 53 watts across four ports is ample for infrared cameras at 5.5 watts each but tight for four full colour models drawing 10 to 12 watts.
