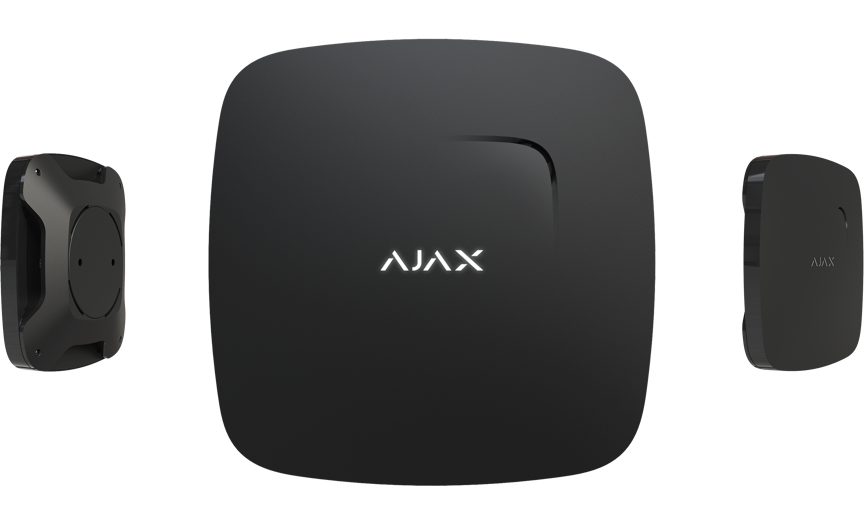

Fire Detector

Ajax FireProtect

Brand
Ajax
Model
FireProtect
Part number
AJAX-FIREPROTECT
Availability
Ordered on demand

Smoke detection on the same hub as the intrusion alarm

Request a quote

Specifications

Detector Photoelectric smoke plus heat
Heat alarm above 60°C, or rise of more than 30°C in 30 minutes
Built-in sounder 85 dB at 3m
Radio range to hub up to 1,300m in open space
Battery 2 x CR2, up to 4 years, plus CR2032 backup
Installation Indoor ceiling
Operating temperature 0°C to 65°C
Dimensions 132 x 132 x 31mm
Weight 220g
Standard EN 14604

What this is for

FireProtect Jeweller: sounds the alarm on its own, hub or no hub

A wireless smoke and heat detector that will raise a local fire alarm through its own built-in siren even if it has not been added to a hub at all. It watches two things at once, a photoelectric smoke chamber, and a thermistor tuned to catch a sharp temperature spike even before visible smoke does.

Press the test button and the detector simulates smoke electronically to check the chamber; when dust builds up, it tells you it needs cleaning through the app rather than waiting for you to notice a false-alarm pattern. It ships ready to mount: battery pre-installed, no enclosure to open, connected to the hub with one tap in the app, and mounted on the SmartBracket panel in minutes.

Interconnected alarm, where one detector triggering sounds every fire detector in the building, is a hub setting, so it needs the detectors paired to a hub to work. Standalone, each unit sounds only for itself. Note also that Ajax's current fire line is FireProtect 2; this is the earlier generation and remains supported.

  • Detects smoke (photoelectric) and rapid temperature rise
  • Built-in siren, sounds a local alarm even with no hub paired
  • Interconnected alarm across all fire detectors when paired to a hub
  • Self-testing smoke chamber with dust-cleaning reminders
  • Up to 1,300 m encrypted Jeweller range in open space, with jamming detection
  • 2x CR2 batteries pre-installed, up to 4 years, plus CR2032 backup
  • Tamper alarm if removed from its mount, SmartBracket install, no disassembly

Compatibility

Reports to any Ajax hub (Hub, Hub 2, Hub 2 Plus) over the Jeweller protocol and can share a hub with your intrusion sensors. No separate fire panel needed.
