Alarm Accessory

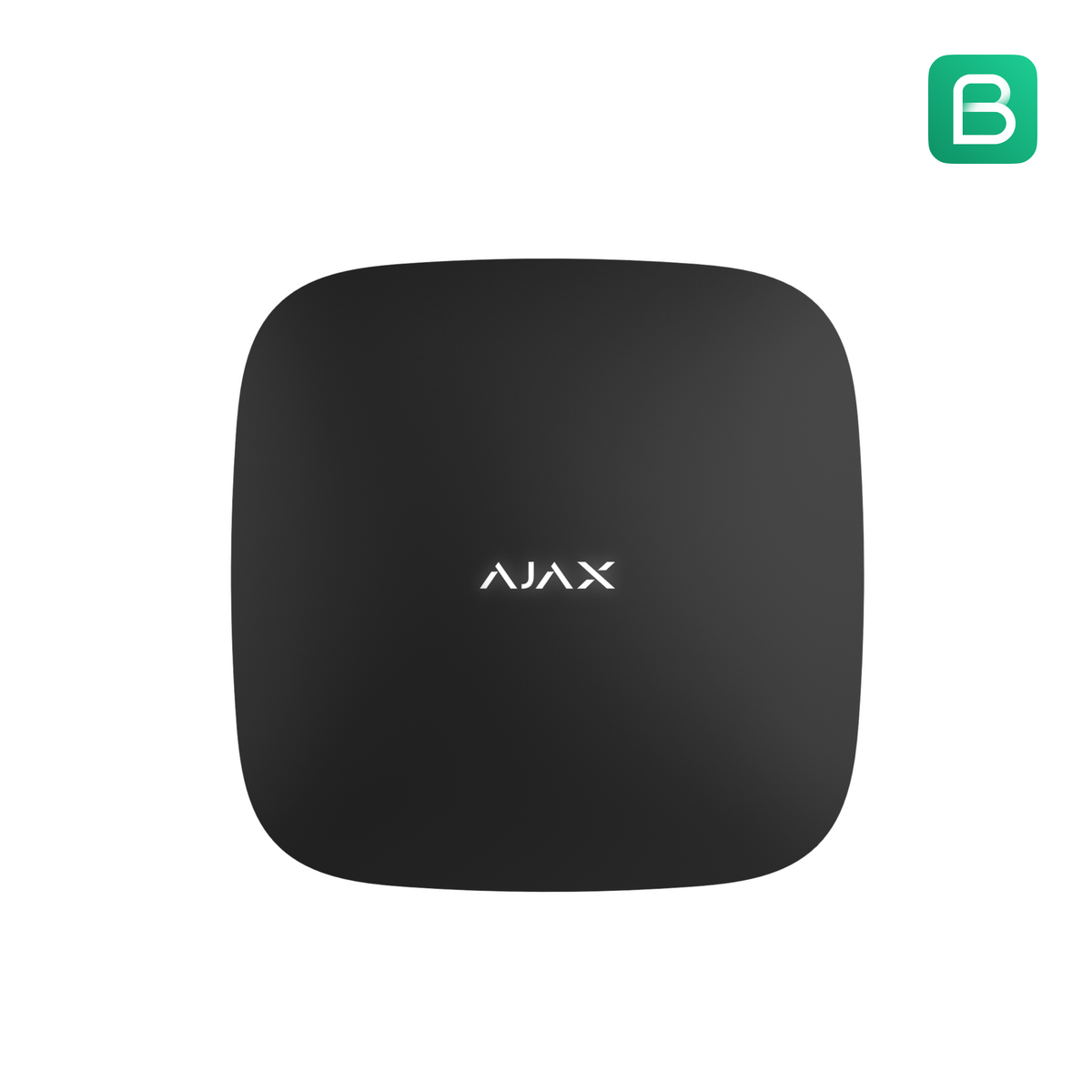

Ajax ReX 2
- Brand
- Ajax
- Model
- ReX 2
- Part number
- AJAX-REX2
- Availability
- Ordered on demand
- Datasheet
- Manufacturer specifications ↗
Extending radio range into basements, steel structures and far corners
Request a quoteSpecifications
| Type | Radio signal range extender |
|---|---|
| Link to hub | Jeweller radio or Ethernet 100 Mbps |
| Radio range | up to 1,700m in open space |
| Devices | up to 199 |
| Photo verification | Supported (MotionCam) |
| Power | 110–240V AC, up to 10W |
| Backup battery | Li-ion 2Ah, up to 24 hours (12 hours with Ethernet) |
| Installation | Indoor |
| Operating temperature | -10°C to 40°C |
| Dimensions | 163 x 163 x 36mm |
| Weight | 336–364g |
What this is for
ReX 2 Jeweller: extends the radio, not just the range, so photos still get through
Most range extenders just repeat a signal. ReX 2 carries two radio protocols in parallel, Jeweller for commands and alarms, Wings for MotionCam photo data, across four antennas, so a facility too large for one hub still gets full photo verification at the far end, not just a beep. Alarms reach the hub in no more than 0.3 seconds through the extender regardless of how many devices are connected, and the first MotionCam photo arrives in about 10 seconds over Ethernet or about 18 seconds over Wings at default image resolution. Higher resolutions and weaker signal push both figures up, to as much as 53 seconds over radio in Ajax's own published table.
It can also run over a wired connection: an Ethernet cable to the same network as the hub, with no length limit imposed by the system, useful for an underground parking structure, a steel warehouse, or anywhere radio alone won't reach reliably. If one channel drops, ReX 2 switches to the other automatically. Up to 5 range extenders can sit on one Ajax system, each covering up to 1,700 m of open-space radio range to the hub, and up to 3,400 m from hub to detector through the repeater.
Backup power runs up to 24 hours with Ethernet disabled, or up to 12 hours with Ethernet active, so a power outage doesn't immediately cut coverage. Setup is QR-code pairing through the Ajax app, remote reconfiguration afterward, and a tamper alarm if the enclosure is opened.
- Works with Hub 2 (2G/4G), Hub 2 Plus, Hub BP, Superior Hub G3 and Hub Hybrid. Not compatible with the original Hub or Hub Plus
- Dual radio protocols: Jeweller (commands and alarms) plus Wings (MotionCam photos)
- Alarm delivery in no more than 0.3 s; first photo about 10 s over Ethernet, about 18 s over Wings at default resolution
- Ethernet backup with no system-imposed cable length limit
- Up to 5 range extenders per system, 1,700 m radio range each, 3,400 m hub to detector through the repeater
- Up to 24 hours backup battery with Ethernet disabled, up to 12 hours with Ethernet active
- Certified EN 50131 Grade 2, PD 6662:2017, UL 1023, UL 2610, ULC S304
Compatibility
Works with Hub, Hub 2 and Hub 2 Plus, and repeats the signal of any Jeweller detector, siren or keypad in this catalog. Each hub supports up to 5 range extenders.
