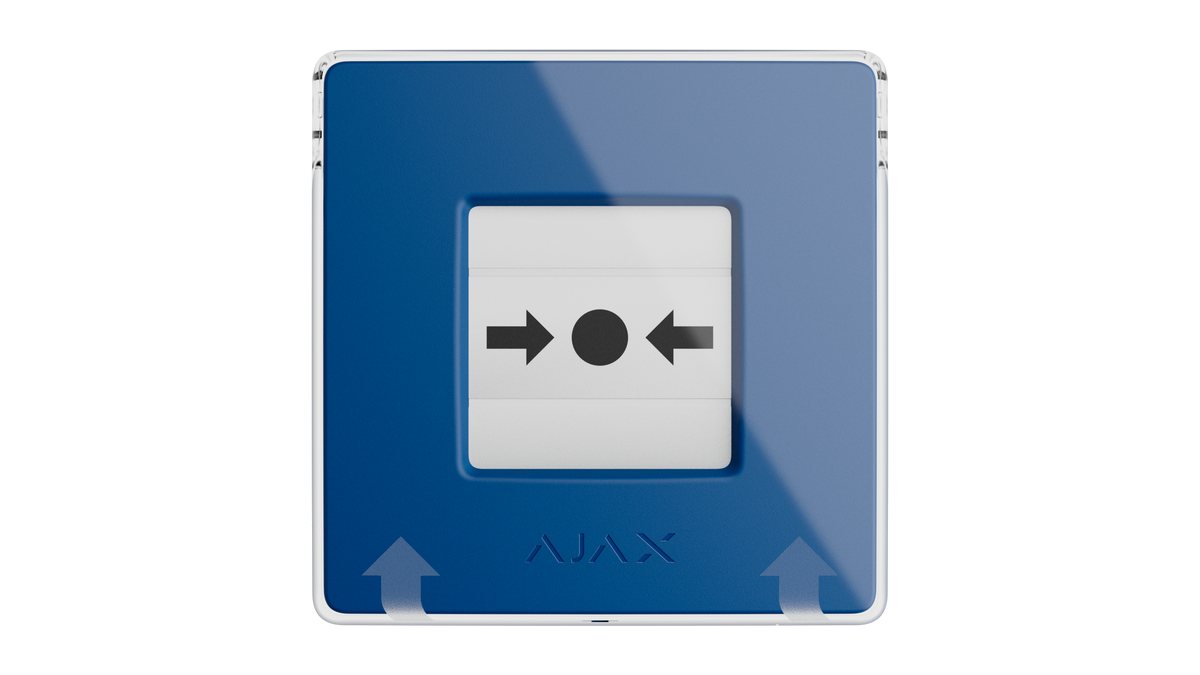

Ajax Manual Call Point

ManualCallPoint Jeweller: one press, addressed, verified, and sent to the right place

A wireless call point, not a wired one, so it mounts anywhere in a building without pulling cable. Under the lid is a simplified button mechanism built specifically to reduce the risk of failure, protected by a transparent lid that stops accidental activation. It covers more than fire: fire alarm, evacuation, auxiliary alarm, panic button, gas leak alarm, malfunction alert, water leak alarm and scenario trigger are all configurable in the app, so one button type can serve several emergency roles depending on where it's installed.

Every press is addressable: the system logs exactly which button fired and when, in an event log holding the 500 most recent events. If a MotionCam detector is nearby, the app can also show a photo of the moment of activation, so a response team isn't acting on a bare signal. The alarm reaches the Central Monitoring Station, and after it fires, the button can only be reset with the included special key, preventing anyone from silencing it by hand.

Communication reaches up to 1,700 m in open space to the hub or a range extender. The two pre-installed CR123A batteries run up to 7 years at typical use, taken as one one-minute press per week, and the device self-diagnoses and reports its status to the hub automatically. Mounting is SmartBracket-based: no enclosure to open, paired by QR code, with a lock to secure it to the bracket and a tamper alarm if it's removed.

• Wireless, not wired: no cable run required for installation
• Configurable modes: fire, evacuation, auxiliary, panic, gas leak, malfunction, water leak, scenario trigger
• Addressable: logs which button fired, when, and where
• Visual verification via MotionCam detectors
• Up to 7 years on 2x pre-installed CR123A batteries at typical use
• Up to 1,700 m (5,500 ft) wireless range in open space
• Transparent protective lid, tamper alarm, key-reset only after activation
• Available in Red, Green, Yellow, White and Blue
