Access Control

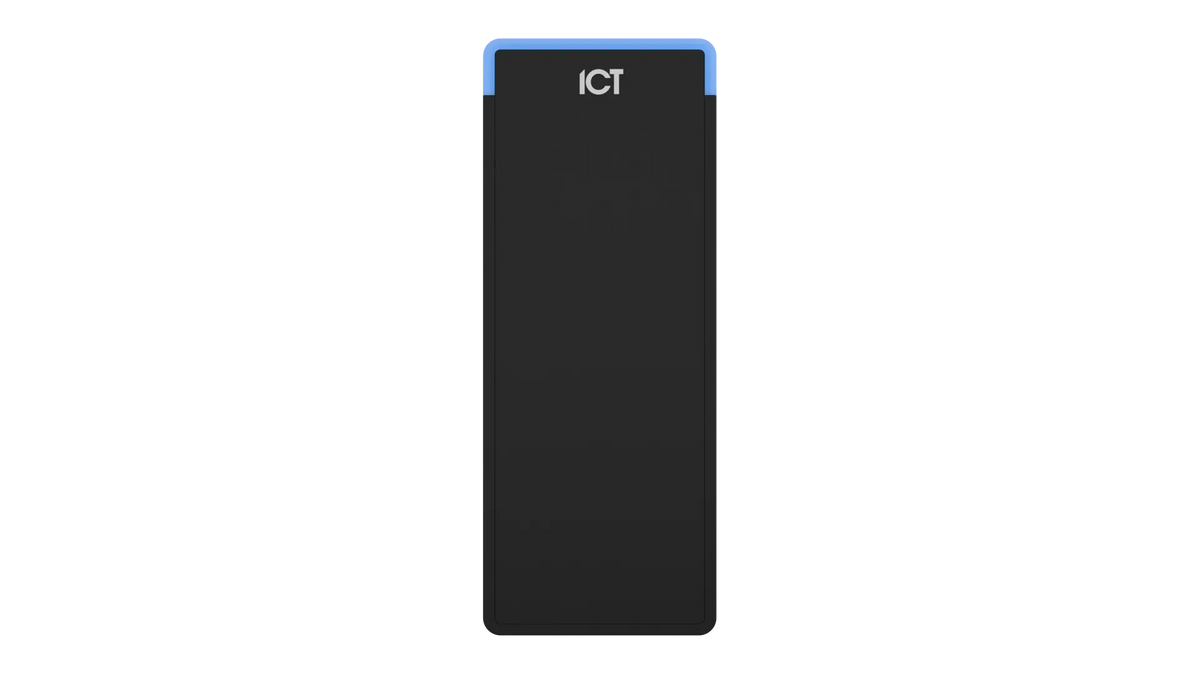

ICT tSec Standard 13.56MHz Card Reader, Black
- Brand
- ICT
- Model
- PRX-TSEC-STD-DF-B
- Part number
- PRX-TSEC-STD-DF-B
- Availability
- Ordered on demand
- Datasheet
- Manufacturer specifications ↗
Door frames and mullions, indoors or outdoors
Request a quoteSpecifications
| Credentials | 13.56MHz DESFire and MIFARE |
|---|---|
| Communication | Encrypted RS-485, OSDP with Secure Channel (AES-128), or Wiegand |
| Protection | IP65 |
| Form factor | Standard mullion |
| Colour | Black |
| NFC | Supports ICT mobile credentials on Android |
What this is for
A mullion-size reader for DESFire and MIFARE cards and tags, rated IP65 so it can sit on an exposed door frame. It connects over encrypted RS-485 or OSDP with Secure Channel, which means someone who reaches the cable cannot record a card and replay it later. Standard Wiegand is available for older panels, without that protection.
This model reads 13.56MHz credentials only. For phones as credentials, choose the Bluetooth version.
What you also need
This item is part of a system. A working installation needs each of these.
- ✓ A reader port on a Protege WX controller or reader expander
- ✓ Shielded multicore cable back to the controller
- ✓ DESFire EV3 cards or key tags
