Alarm Detector

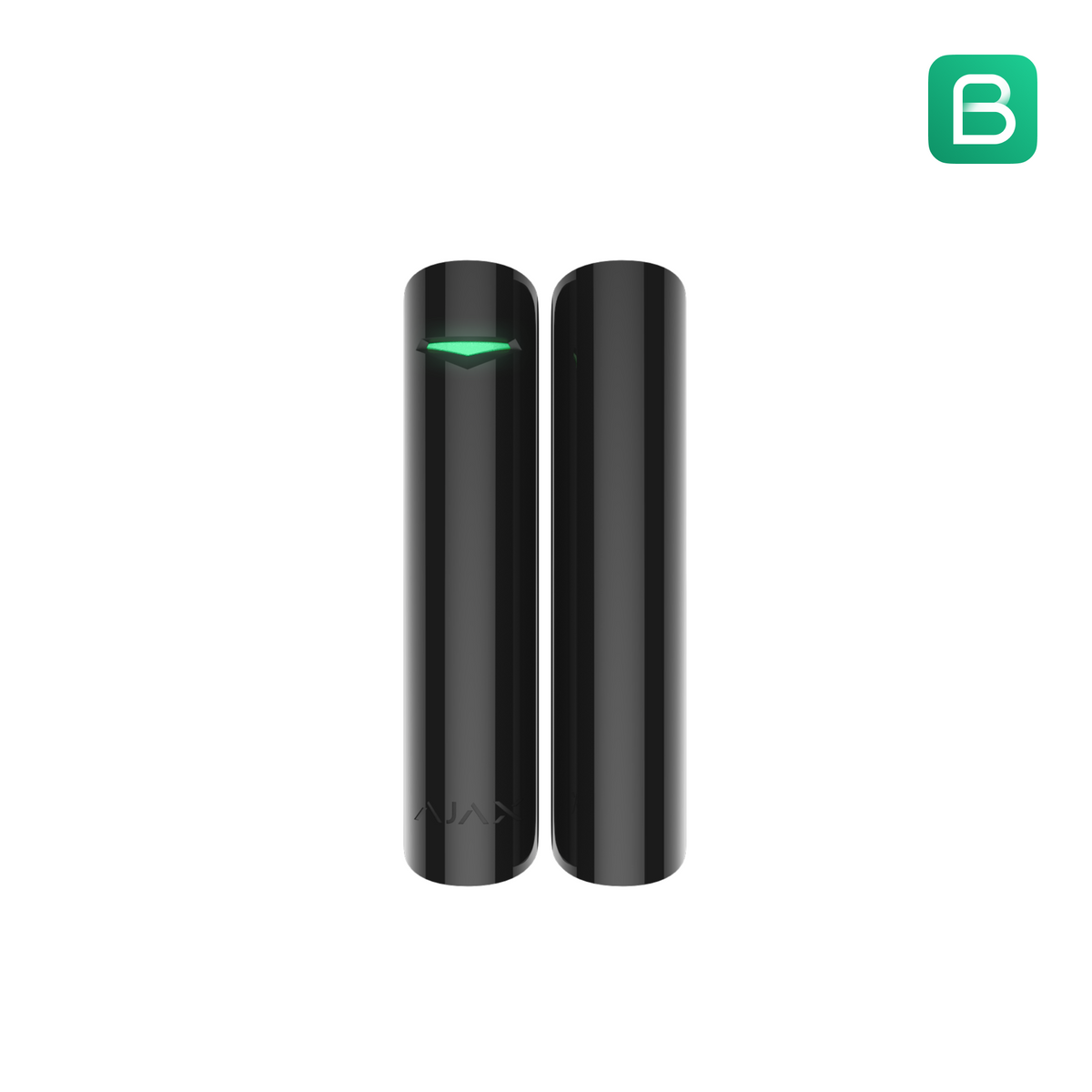

Ajax DoorProtect Plus

Brand
Ajax
Model
DoorProtect Plus
Part number
AJAX-DOORPROTECTPLUS
Availability
Ordered on demand

Doors and windows, opening detection

Request a quote

Specifications

Detector Reed switch opening contact plus shock and tilt sensor
Triggering gap up to 1cm (small magnet), up to 2cm (large magnet)
Wired input Yes, one NC detector
Radio range to hub up to 1,200m in open space
Battery 1 x CR123A, up to 5 years
Installation Indoor
Operating temperature -10°C to 40°C

What this is for

DoorProtect Plus Jeweller: for doors, windows, and the vault that won't wait for a break-in to finish

Everything in the standard DoorProtect, plus a built-in accelerometer that catches what a reed switch alone would miss: a door being forced, a vault being pried, or a window left cracked for air that gets pushed the rest of the way open. The shock sensor has three adjustable sensitivity levels and can be set to ignore a single bump, so a slammed door down the hall won't trip a false alarm, but a real forcing attempt will.

Tilt detection is built for windows left in airing mode: set the trigger angle anywhere from 5° to 25°, and the delay before an alarm fires anywhere from 1 second to 1 minute, matched to how the window actually gets used.

Same reed-switch reliability as DoorProtect (two magnet sizes, plastic-capsule protection against drops), but the added electronics mean the pre-installed battery runs up to 5 years instead of 7. Wireless range and encryption are unchanged: up to 1,200 m (3,900 ft) over Jeweller's encrypted two-way link, with instant tamper reporting and full remote configuration.

  • Built-in accelerometer for shock and tilt detection
  • 3 adjustable shock-sensitivity levels, with single-impact ignore
  • Tilt angle 5°–25°, alarm delay 1 second–1 minute
  • Up to 5 years on the pre-installed battery
  • Up to 1,200 m (3,900 ft) encrypted wireless range
  • Terminals for a third-party NC detector

Compatibility

Pairs with any Ajax hub (Hub, Hub 2, Hub 2 Plus) over the encrypted Jeweller radio protocol. Not compatible with non-Ajax alarm panels.
