Door Hardware Set: Standard Door
- Brand
- Urban Eye Security
- Availability
- Ordered on demand
Timber, metal and aluminium framed doors controlled by a Suprema terminal or an ICT reader
Request a quoteSpecifications
| Lock | Magnetic lock, at least 280 kg holding force on internal doors and 500 kg on main entrances and external doors |
|---|---|
| Bracket | L, Z or U bracket chosen for the direction the door opens |
| Power | Regulated 12V DC supply with battery backup, sized with at least 25% headroom over the lock and reader draw |
| Exit | Request-to-exit button on the secure side |
| Emergency release | Green break glass that cuts power to the lock directly |
| Override | Key switch for maintenance and power failure |
| Closer | Sized to the door, so the lock pulls in every time |
| Cable | 8-core screened cable for the lock and exit button runs |
| Failure mode | Fail-safe, releases on power loss or a fire alarm signal |
| Models | Confirmed on your quote |
What this is for
Everything a controlled door needs apart from the reader, quoted per door. A reader or terminal decides who may open a door. This set is what actually holds it shut, releases it safely and keeps it working through a power cut.
We specify every set to the same standard rather than to a brand, and confirm the exact models on your quote. The lock is fail-safe, so the door releases on power loss or a fire alarm signal, and the emergency break glass cuts power to the lock directly rather than through the controller, so the door still opens if the controller fails.
Pair it with a Suprema terminal and a Secure I/O 2 module for a single door, so the lock relay sits on the secure side rather than inside the terminal outside the door, or with an ICT tSec reader on a Protege controller where several doors are managed together.

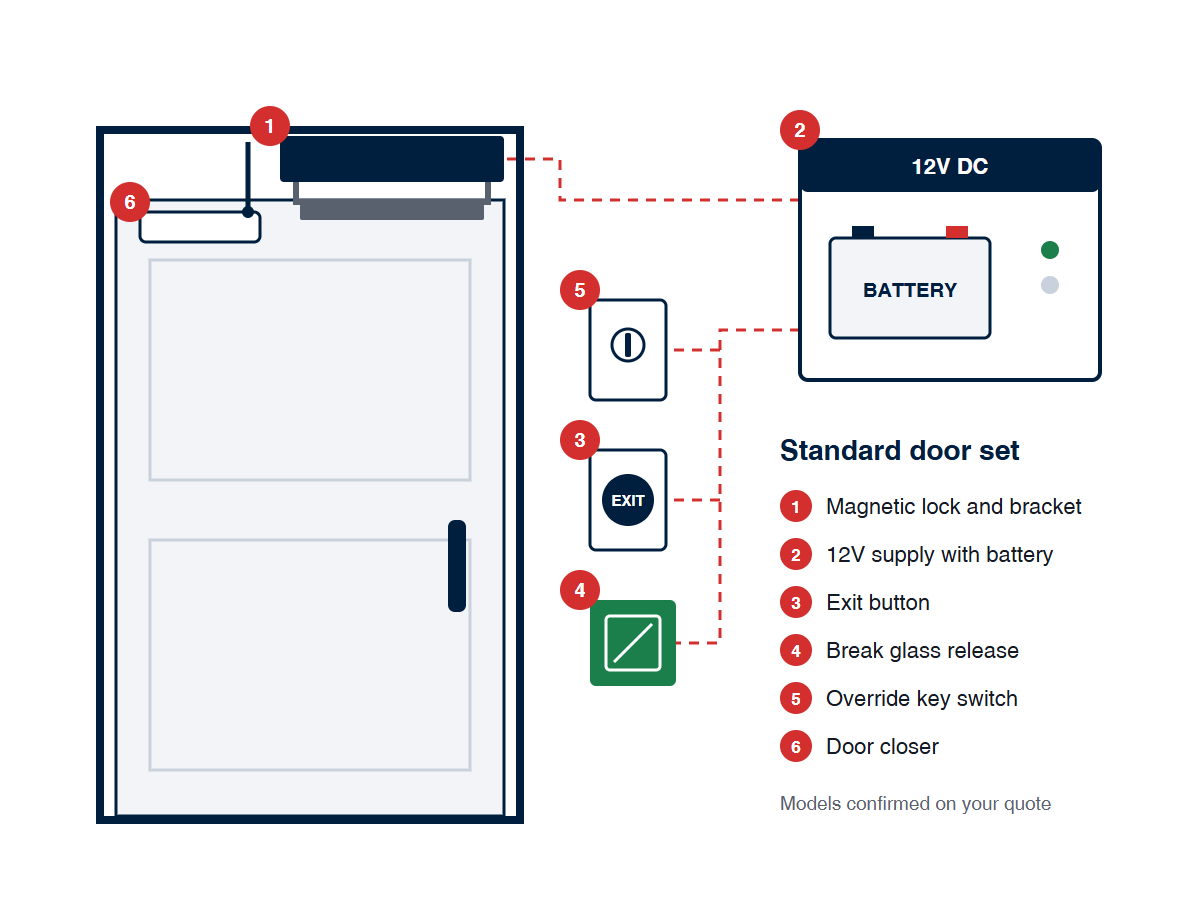

In the box
- ✓ Magnetic lock and bracket
- ✓ Power supply with backup battery
- ✓ Request-to-exit button
- ✓ Emergency break glass
- ✓ Override key switch
- ✓ Door closer
- ✓ 8-core screened cable for the door
Not included
Listed here so it does not appear as an extra cost later.
- ✕ The reader or terminal, chosen separately
- ✕ Door repairs, frames and hinges
- ✕ Electrical work beyond the door position
- ✕ Fire alarm interface cabling on the fire panel side
- ✕ Installation, quoted separately
What you also need
This item is part of a system. A working installation needs each of these.
- ✓ A Suprema terminal, or an ICT tSec reader on a Protege controller, for the door
- ✓ A mains point near the door for the power supply
- ✓ A sound door and frame, so the lock can hold
