Door Hardware Set: Frameless Glass Door
- Brand
- Urban Eye Security
- Availability
- Ordered on demand
Frameless toughened glass doors at receptions, shopfronts and offices
Request a quoteSpecifications
| Lock | Magnetic lock, at least 280 kg holding force, with a glass door bracket |
|---|---|
| Mounting | Glass door clamps top and bottom, so the glass is never drilled |
| Power | Regulated 12V DC supply with battery backup, sized with at least 25% headroom over the lock and reader draw |
| Exit | Request-to-exit button on the secure side |
| Emergency release | Green break glass that cuts power to the lock directly |
| Override | Key switch for maintenance and power failure |
| Closer | Floor spring or overhead closer suited to the glass door |
| Cable | 8-core screened cable for the lock and exit button runs |
| Failure mode | Fail-safe, releases on power loss or a fire alarm signal |
| Models | Confirmed on your quote |
What this is for

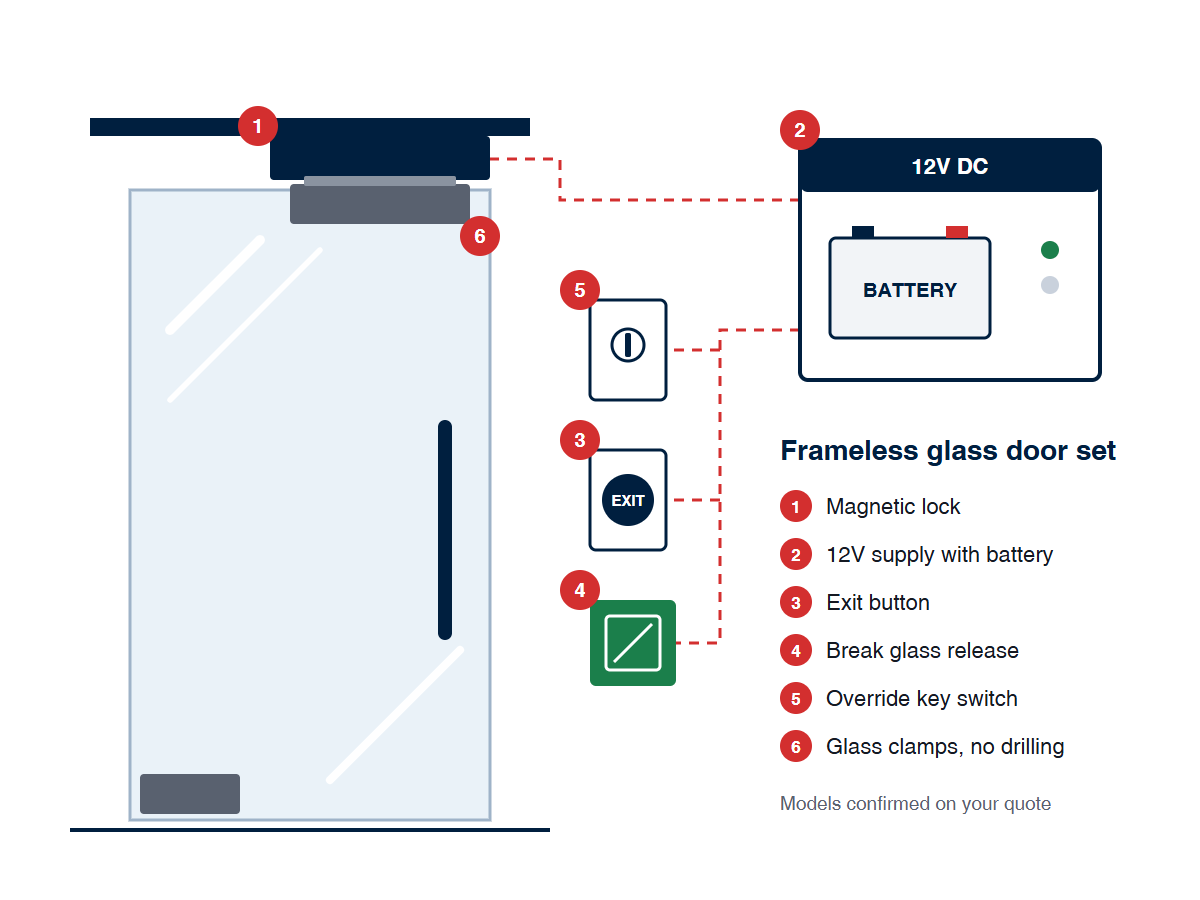

The door hardware for a frameless toughened glass door, quoted per door. Toughened glass cannot be drilled without putting the pane at risk, so the lock and its bracket clamp to the top and bottom edges of the glass instead. The glass is untouched and the hardware comes off cleanly at the next refurbishment.
Every set is specified to the same standard and the exact models are confirmed on your quote. The lock is fail-safe, so the door releases on power loss or a fire alarm signal, and the emergency break glass cuts power to the lock directly.
Pair it with a Suprema terminal and a Secure I/O 2 module for a single door, so the lock relay sits on the secure side rather than inside the terminal outside the door, or with an ICT tSec reader on a Protege controller where several doors are managed together.
In the box
- ✓ Magnetic lock with glass door bracket
- ✓ Glass door clamps
- ✓ Power supply with backup battery
- ✓ Request-to-exit button
- ✓ Emergency break glass
- ✓ Override key switch
- ✓ Closer suited to the glass door
- ✓ 8-core screened cable for the door
Not included
Listed here so it does not appear as an extra cost later.
- ✕ The reader or terminal, chosen separately
- ✕ Glass replacement or repairs to the door leaf
- ✕ Electrical work beyond the door position
- ✕ Fire alarm interface cabling on the fire panel side
- ✕ Installation, quoted separately
What you also need
This item is part of a system. A working installation needs each of these.
- ✓ A Suprema terminal, or an ICT tSec reader on a Protege controller, for the door
- ✓ A mains point near the door for the power supply
- ✓ Toughened glass of a standard thickness, confirmed at the site visit
