Camera - Mini Dome IR

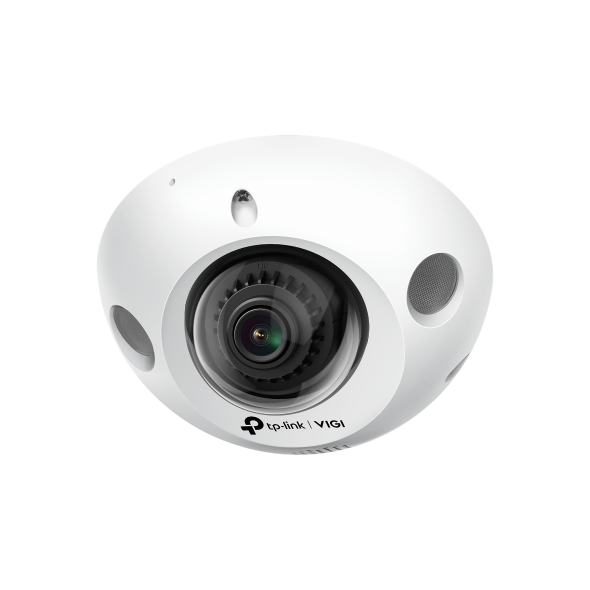

VIGI C230I Mini - 3MP IR Mini Dome Network Camera
- Brand
- TP-Link
- Model
- C230I Mini
- Part number
- VIGI-C230I-MINI
- Max power draw
- 8.5 W
- Availability
- Ordered on demand
- Datasheet
- Manufacturer specifications ↗
Configuration
This choice changes the specification and cannot be changed after ordering. Tell us which you need when you enquire.
Small offices, retail shops, narrow installation spaces
Request a quoteSpecifications
| Resolution | 3MP (2304x1296) |
|---|---|
| Lens | 2.8mm fixed |
| Night vision | IR up to 30m |
| Smart features | Human & Vehicle Classification, Smart Detection, Corridor Mode |
| Power | PoE 802.3af/at max 8.5W; 12V DC max 7.5W |
| Protection | IK08 |
| Operating temperature | -30°C to 60°C |
| Audio | Built-in microphone and speaker |
| Storage | microSD up to 512GB |
| Compression | H.265+ |
What this is for
A compact dome measuring 114mm across, for lift cars, tills and tight corners where a full-size camera would be intrusive. Records 2304 x 1296 with genuine two-way audio through a built-in microphone and speaker, and corridor mode rotates the frame from 16:9 to 9:16 for tall narrow spaces where a wide image wastes most of its pixels on the walls.
Note what TP-Link do not publish: this model carries an IK08 impact rating and no IP weatherproof rating at all. Treat it as an interior camera, and use an IP67 dome such as the C240I where the position is exposed.
MicroSD up to 512GB, 8.5 watts over PoE, 2.8mm lens at 106.9 degrees.
What you also need
This item is part of a system. A working installation needs each of these.

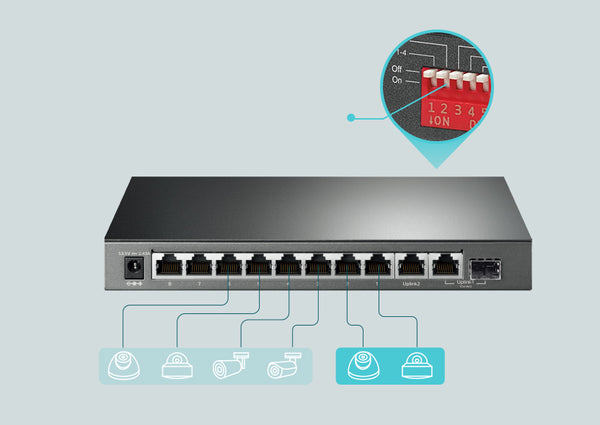

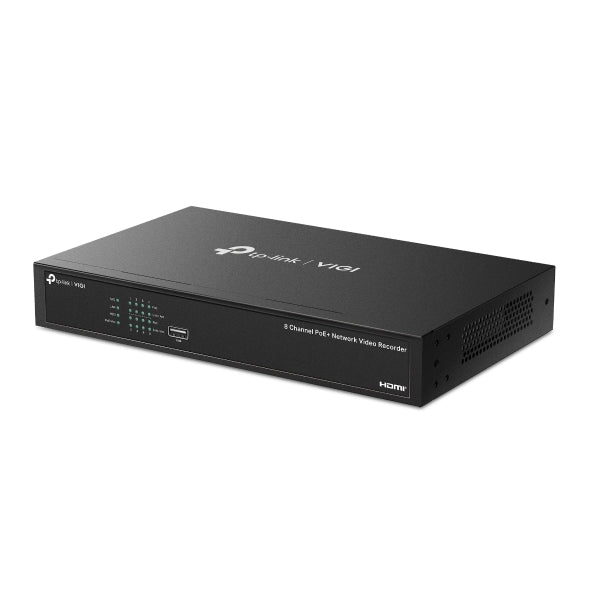

- ✓ A PoE port on a VIGI recorder or an 802.3af/at PoE switch
- ✓ Cat6 cable, up to 100 metres per run
- ✓ A free recorder channel, with enough PoE budget left for this camera's draw
