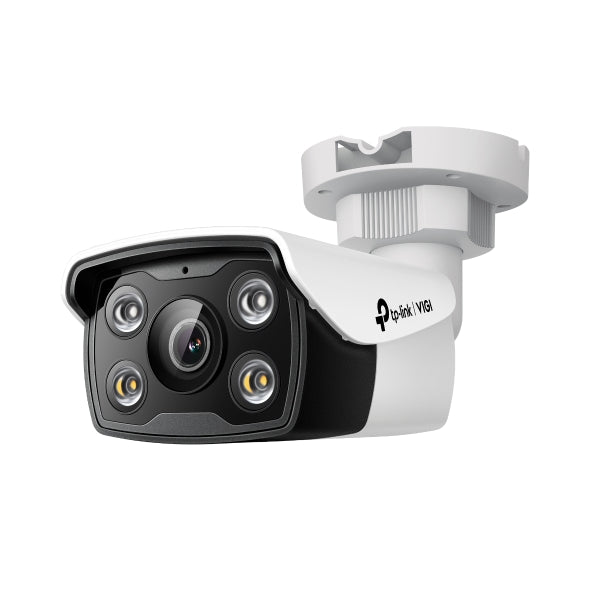

VIGI C340 - 4MP Outdoor Full-Color Bullet Network Camera

Camera - Bullet Outdoor

VIGI C340 - 4MP Outdoor Full-Color Bullet Network Camera

Brand
TP-Link
Model
C340
Part number
VIGI-C340-2.8
Max power draw
8.0 W
Availability
Ordered on demand

Lens

2.8mm LensVIGI-C340-2.8 4mm LensVIGI-C340-4 6mm LensVIGI-C340-6

This choice changes the specification and cannot be changed after ordering. Tell us which you need when you enquire.

Building perimeters, retail fronts, access points

Request a quote

Specifications

Resolution 4MP
Lens options 2.8mm, 4mm, 6mm
Night vision Full colour up to 30m
Smart features Human & Vehicle Classification, Active Defense
Power PoE 802.3af/at max 8W; 12V DC max 7W
Protection IP67
Operating temperature -30°C to 60°C
Audio Built-in microphone and speaker
Storage microSD up to 512GB
Compression H.265+

What this is for

A perimeter camera that responds rather than only records. When a person or vehicle crosses a line you have defined, it triggers an audible warning through its built-in speaker and a flashing white light while alerting your phone, and two-way audio lets you speak to whoever is there. Holds full colour down to 0.005 lux with white and infrared LEDs reaching 30 metres.

IP67 rated on current stock for exterior walls, loading docks and perimeter gates, with microSD up to 512GB and 8 watts over PoE. Choose 2.8mm at 102.5 degrees, 4mm at 76.3 degrees, or 6mm at 50.6 degrees for the longest reach. Earlier hardware revisions of this model were rated IP66 and published different lens angles, so confirm the version if the exact figures matter to the job.

What you also need

This item is part of a system. A working installation needs each of these.

  • ✓ A PoE port on a VIGI recorder or an 802.3af/at PoE switch
  • ✓ Cat6 cable, up to 100 metres per run
  • ✓ A free recorder channel, with enough PoE budget left for this camera's draw

Used in these systems

Complete scopes this item is specified into.

Urban Eye SecurityApartment and multi unit residential access control scopeApartment blocks, gated courts and mixed residential developments Quoted per project See more
Urban Eye SecurityCorporate headquarters access control scopeCorporate offices, headquarters floors and multi tenant commercial ... Quoted per project See more
Urban Eye SecurityPerimeter and intrusion alarm scope for gated residencesStandalone houses, gated compounds and yards where the boundary is ... Quoted per project See more
