Apartment and multi unit residential access control scope

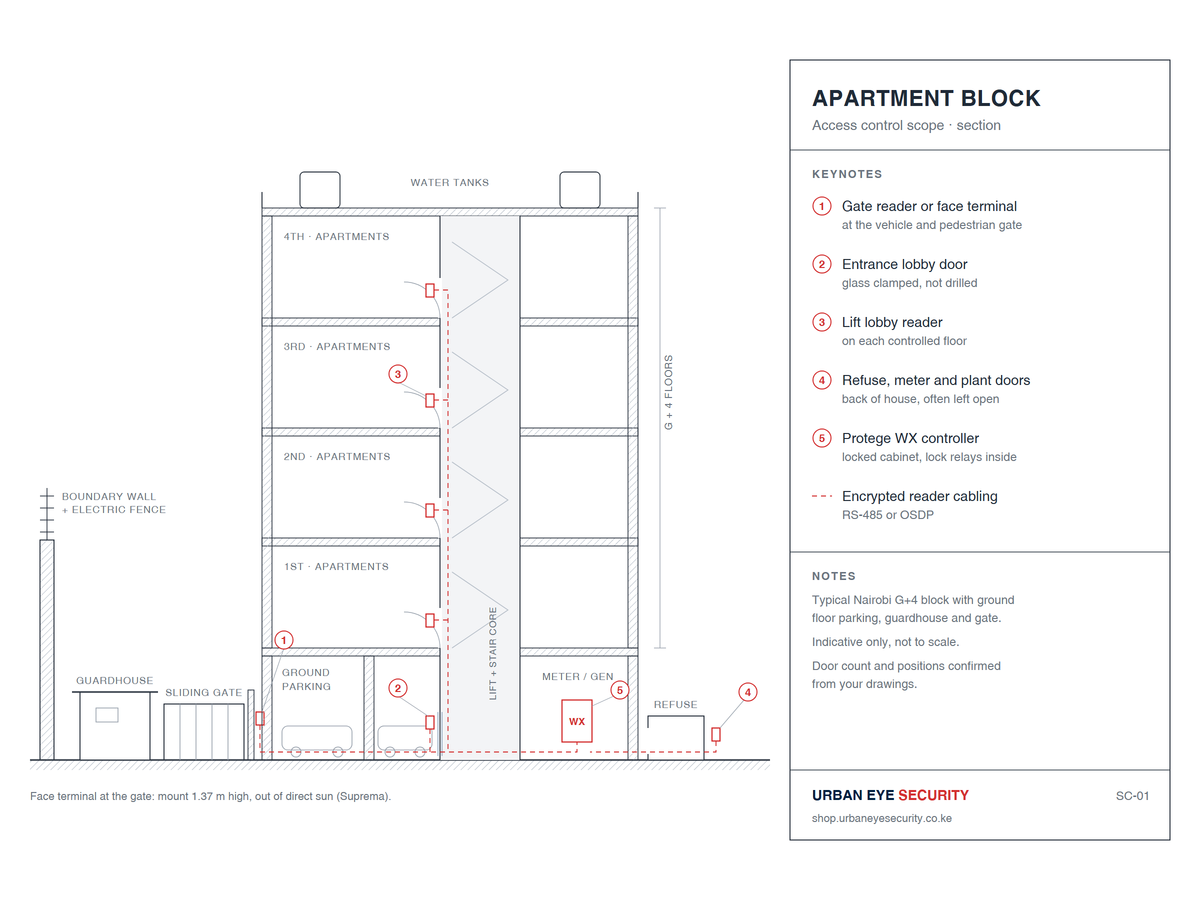

Apartment blocks, gated courts and mixed residential developments
Tap to open full size
What this system protects
A defined access control scope for apartment blocks, gated courts and mixed residential developments in Nairobi. It covers the pedestrian entrance, the vehicle gate, the lift or stair core, and the back of house doors that most developments leave open.

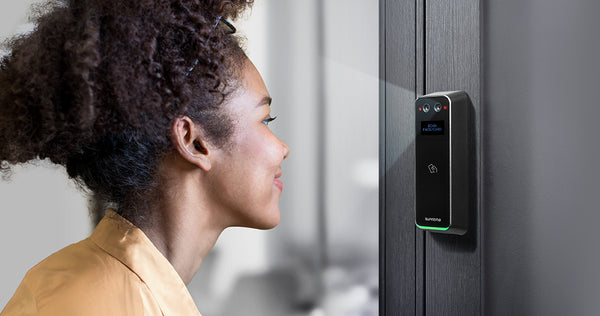

It is built on an ICT Protege WX controller in a locked cabinet, ICT tSec card and phone readers at the doors, and Suprema fingerprint or face terminals only where a door needs biometrics. Protege hardware is supplied on order through our Kenyan distributor.
Three decisions shape it. All lock relays sit inside the locked controller cabinet rather than behind the reader, so pulling a reader off the wall outside a door does not release that door. Readers talk to the controller over encrypted RS-485 or OSDP with Secure Channel rather than Wiegand, so credential data on the cable cannot be captured and replayed. Frameless glass doors are clamped rather than drilled, so the glass is not modified and the landlord is not carrying a broken pane risk.
It is set up to keep the doors working through power cuts, with battery backup sized for the door count, and to support data protection compliance: individual administrator accounts, a defined period for keeping access records, and a card or PIN option for anyone who declines biometric enrolment.
No prices appear on this site. Send us the drawings or the door schedule and we quote the whole scope, including the materials that usually get left out of a hardware list.
What this scope covers
- ✓ Pedestrian entrance to the building
- ✓ Vehicle gate or basement ramp
- ✓ Lift lobby or stair core on each controlled level
- ✓ Back of house doors, refuse, plant and meter rooms
- ✓ Resident, staff and visitor credentials managed from one place
What is included

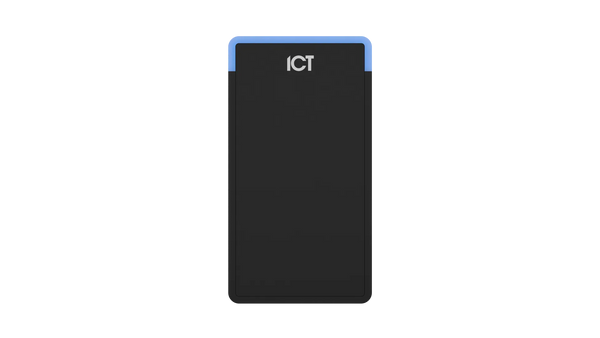

- ✓ ICT tSec readers at each controlled door for cards and phones, with Suprema fingerprint or face terminals where a door needs biometrics

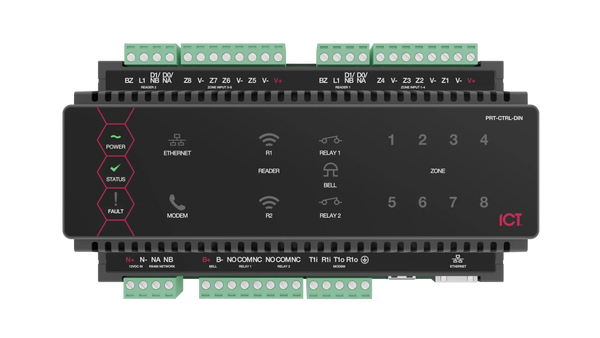

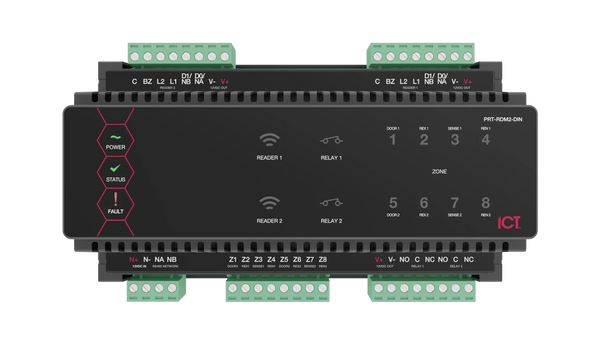

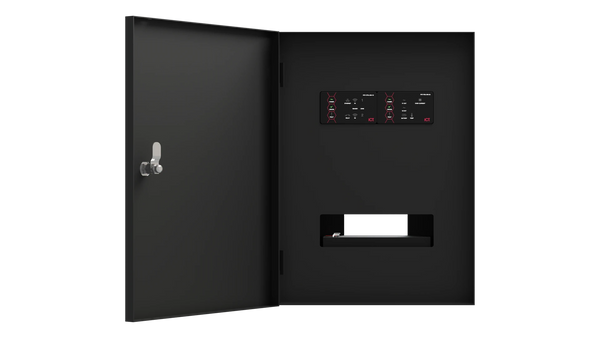

- ✓ ICT Protege WX controller and door expansion hardware, mounted in a lockable cabinet
- ✓ All lock release relays inside the cabinet, never behind the reader
- ✓ Encrypted RS-485 or OSDP Secure Channel wiring between readers and controller
- ✓ Protege third-party reader licence for each Suprema terminal, where biometric doors are specified

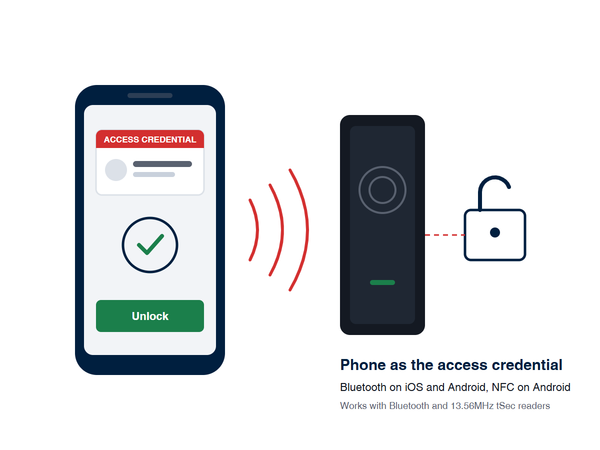

- ✓ Mobile credentials for residents who want them, so a card cannot be lent to someone who does not live there

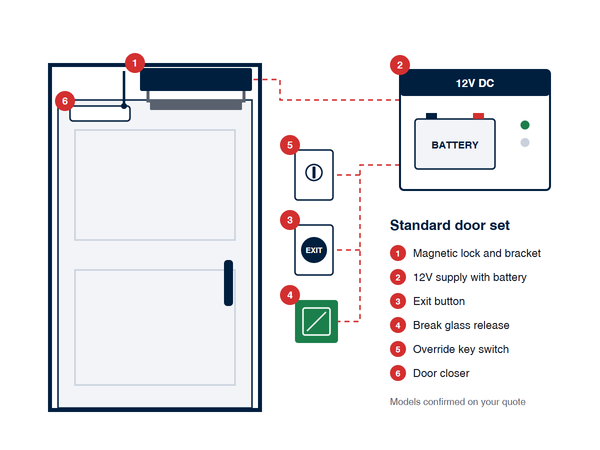

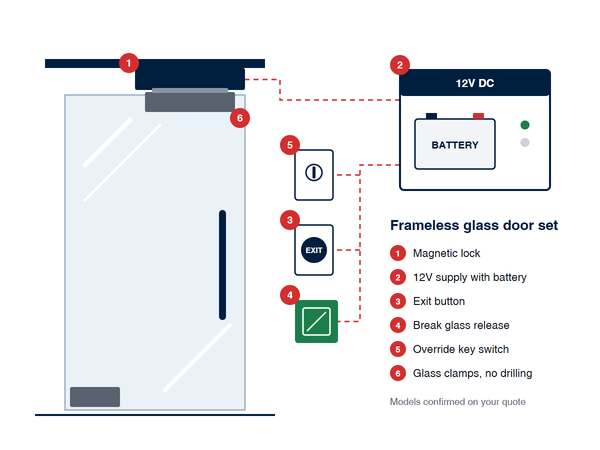

- ✓ Electric locking hardware selected per leaf type, including glass door clamps where the leaf is frameless

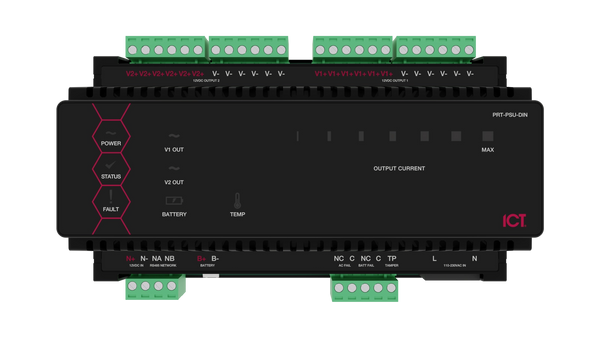

- ✓ Dedicated power supplies with battery backup sized for the door count
- ✓ Door position and request to exit devices where the door schedule requires them
- ✓ Emergency break glass release on every controlled escape route door
- ✓ Credential enrolment, access level design, individual administrator accounts and handover training for the building manager
- ✓ Escape route doors unlock on a fire alarm signal from the fire panel output
What is not included
Listed here so it does not appear as an extra cost later.
- ✕ Civil work, coring, chasing and making good
- ✕ Containment, conduit, trunking and trays
- ✕ Structured cabling backbone and network switching outside the access control cabinet
- ✕ Door leaves, frames and closers where existing hardware is not suitable
- ✕ Intercom and video entry, quoted separately once the entrance design is fixed
- ✕ Fire alarm interface cabling on the fire panel side
- ✕ Any recurring software or portal subscription, which is quoted separately and stated on its own line
- ✕ Statutory approvals and landlord fit out consents
What you get at handover
When we install, this is what you receive before we call the job finished.
- ✓ Every controlled door tested and commissioned, with a signed commissioning record
- ✓ Door schedule and as installed layout drawing, with the model and serial number of every device
- ✓ Administrator and building manager training on site
- ✓ 12 months workmanship warranty on our installation from the date of commissioning, in addition to the manufacturer warranty on the equipment
- ✓ Optional service and maintenance after the first year, quoted separately
What the quote assumes
If any of these do not match your site, tell us and the scope changes. None of them are dealbreakers, they change the quantity.
- • One controller location serves the building, with a cable route available to every controlled door
- • Mains power and a lockable cabinet position exist in that room
- • Doors are structurally sound and closers work, so a lock that must hold will hold
- • Escape route doors are identified on the drawings before the lock type is chosen
- • Network reachability is provided by the building for remote management, if remote management is wanted
- • Work is done in normal hours with access to the areas on the agreed dates
What we will ask you
Have these ready and we can usually quote without a site visit.
- • How many doors do you want controlled, and which of them are on an escape route?
- • How many units and how many residents will hold a credential?
- • Do you want cards, phones, fingerprint, face, or a mix?
- • Is the entrance leaf frameless glass, timber, or a metal frame?
- • Do you have a vehicle gate, and is it existing or new?
- • Where is the comms room or meter room the controller can live in?
- • Who manages the building day to day and who will hold the administrator account?
- • Do you need visitor and contractor access recorded, or residents only?
Bidding on a tender?
- ✓ Bidding on a tender that says 'or equivalent'? Send us the specification and we prepare the clause by clause response, highlighted datasheets and bill of quantities for the equipment we supply
- ✓ No charge when the equipment is supplied through Urban Eye. Company documents, bid security and your installation pricing stay with you
- ✓ Where a specification asks for a reader with a built in relay, the readers meet that clause. We wire the lock to the relay in the locked controller cabinet instead, which Suprema also recommends where security matters
- ✓ Wiegand is available where a specification requires it. Encrypted OSDP over RS-485 is recommended and quoted as standard
