Systems by site / Perimeter and intrusion alarm scope for gated residences
System scope
Perimeter and intrusion alarm scope for gated residences
Standalone houses, gated compounds and yards where the boundary is the first line rather than the building
Tap to open full size
What this system protects
An alarm scope for a finished property, where the walls are up, the driveway is laid and nobody wants a trench through the garden to add security.
It runs on Ajax wireless, which matters here for two reasons. The detectors talk to the panel on their own encrypted radio rather than on cable, so the system goes onto an occupied house without civil work. And because nothing is cast into the building, the whole system comes off the wall and goes with you if you move, rather than being written off as a fixture. If you are renting, that is usually the difference between buying security and not bothering.

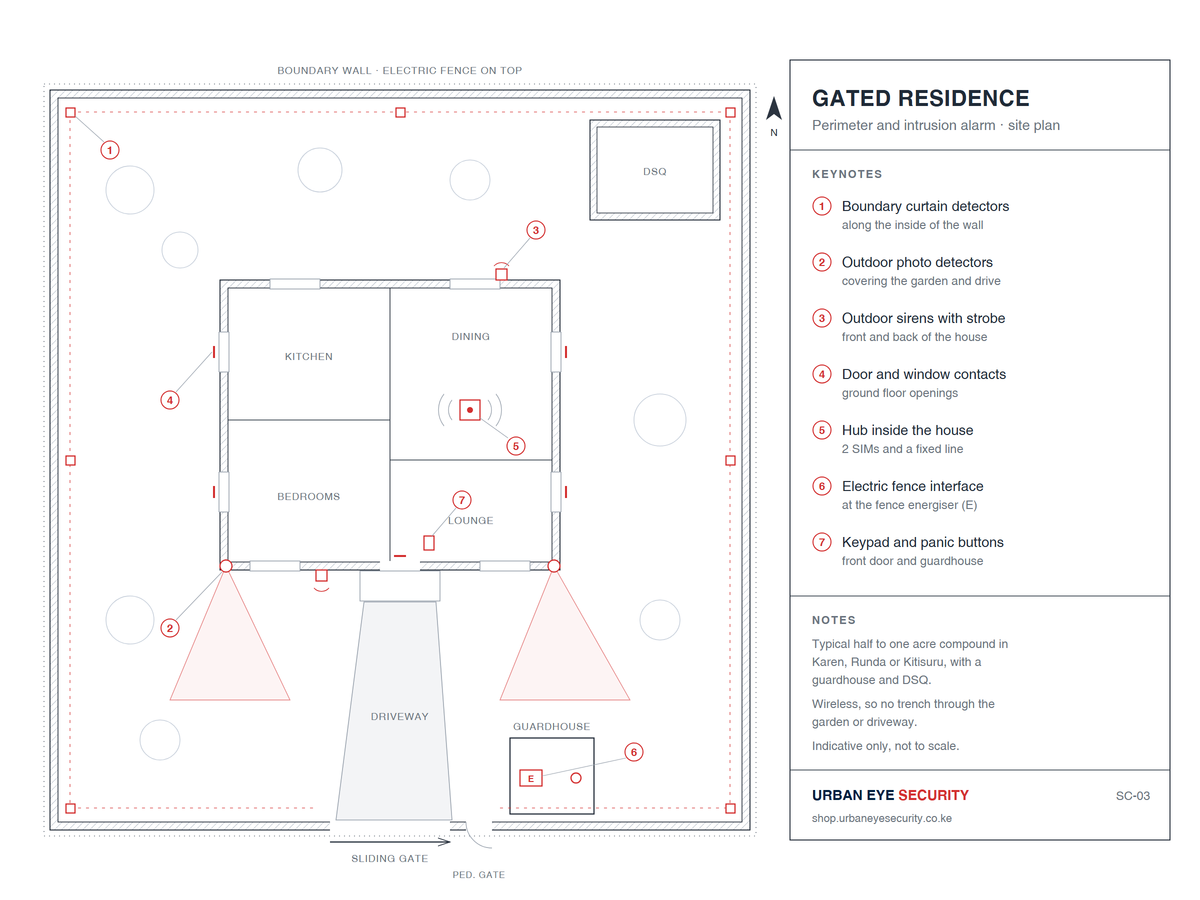

Everything below is sized for a half acre to one acre compound with a main gate, a boundary of roughly 150 metres, a garden buffer and ground floor openings. Your property will differ and the scope changes with it.
Four things we do differently, and why they matter
Two sensors have to agree before the siren sounds. Outdoor detectors that trigger on a single infrared reading go off for dogs, birds and moving foliage. After a few of those at two in the morning somebody switches the system off, and an alarm nobody arms is not an alarm. These detectors compare readings from two independent sensors before deciding, which is why they can be mounted outdoors at all.
The panel knows when a detector stops answering. Every device checks in on a schedule. If one goes quiet, from a flat battery, a fault or interference, the panel raises that as an alarm of its own. An unsupervised detector that failed months ago is a hole nobody can see.
You see a photograph, not just a notification. When a boundary detector triggers, the camera inside it takes a short series of stills and sends them to the phone. The question at two in the morning is whether to call anyone, and a picture answers it faster than a siren does.
Cutting the power or the line does not silence it. The panel holds its own battery and carries two mobile SIMs on separate networks alongside the fixed connection. Losing mains, or losing the fibre, does not take the system off the air.
What this changes on the running cost side
We do not publish payback figures. These are the lines an alarm on a finished property touches, and the ones worth measuring before and after.
- Trenching and reinstatement, which a wireless system on a finished property avoids
- Callout fees for false alarms, which fall when outdoor detectors are chosen for the position
- A separate dialler and SIM for the electric fence, replaced by one system
- Time spent checking whether the system is actually armed and working
- Replacement of a whole platform because the panel was discontinued, since devices are added to this system over time rather than swapped for a new one
- The system itself, which is unbolted and taken with you if you move rather than written off as a fixture
- Insurance terms, which some insurers set against the grade of system fitted
None of these are guaranteed savings.
What this scope covers
- ✓ The boundary line, including an interface to an electric fence that is already there
- ✓ The approach and garden between the boundary and the building
- ✓ Ground floor doors and opening windows
- ✓ The gate and the driveway
- ✓ Arming and disarming for the household, with a silent duress option
What is included

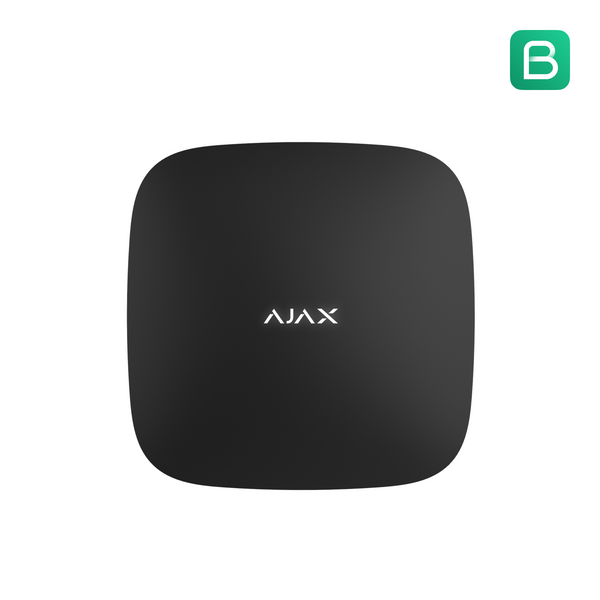

- ✓ Central panel with mains and battery power, two mobile networks and a fixed connection
- ✓ Outdoor detectors with photo capture at the main approaches
- ✓ Boundary curtain detectors along the wall line
- ✓ Outdoor sirens with strobe and tamper protection
- ✓ Contacts with vibration detection on ground floor doors and windows
- ✓ An interface module to bring an existing electric fence energiser onto the same system

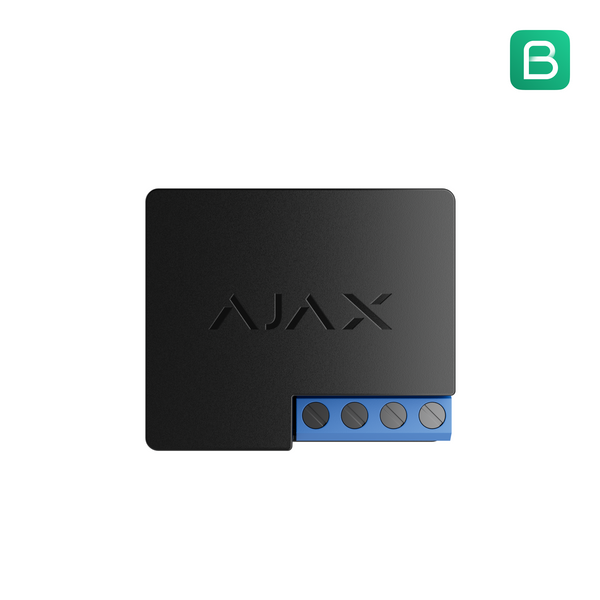

- ✓ Relay outputs to switch perimeter lighting when the boundary is crossed

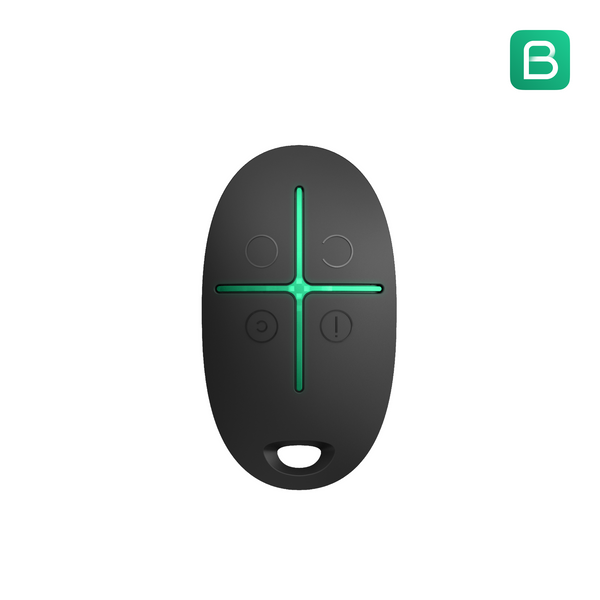

- ✓ Keypad and remote fobs, with panic buttons
- ✓ Zone mapping, arming schedules and handover to the household
What is not included
Listed here so it does not appear as an extra cost later.
- ✕ Civil work, coring and making good
- ✕ The electric fence itself, its energiser, or its repair
- ✕ Mains supply, sockets and any electrical work
- ✕ Surge protection on the incoming supply, quoted separately and strongly recommended
- ✕ Perimeter light fittings, where new ones are needed
- ✕ Mobile data beyond the first period, quoted on its own line
- ✕ Guarding and armed response, which are contracted separately
- ✕ Monitoring, quoted separately: Urban Eye PRO Monitoring, or your own response provider
What you get at handover
When we install, this is what you receive before we call the job finished.
- ✓ Every zone walk tested, with a signed test record
- ✓ Zone schedule and as installed layout, with the model and serial number of every device
- ✓ Alarm reporting to your phones, Urban Eye PRO Monitoring or your response provider set up and tested in front of you
- ✓ Household training on arming, disarming, panic buttons and the duress code
- ✓ 12 months workmanship warranty on our installation from the date of commissioning, in addition to the manufacturer warranty on the equipment
- ✓ Optional service and maintenance after the first year, quoted separately
What the quote assumes
If any of these do not match your site, tell us and the scope changes. None of them are dealbreakers, they change the quantity.
- • The boundary is a continuous wall or fence with no open frontage
- • Mains power and a mounting position exist inside the building for the panel
- • There is mobile coverage from at least one network at the property, which we confirm on site
- • Any existing electric fence has a working energiser with an accessible alarm relay
- • Detectors can be mounted at the heights the manufacturer specifies, without obstruction
- • Work is done in normal hours with somebody present for handover
What we will ask you
Have these ready and we can usually quote without a site visit.
- • Roughly how big is the plot, and is the boundary a wall, a fence or a hedge?
- • Is there an electric fence already, and is it currently working?
- • Has an alarm on this property ever gone off for no reason, and do you know what set it off?
- • How many doors and windows open on the ground floor?
- • Who should the alarm reach, and what should they do when it does?
- • Is anyone at home during the day?
- • Should the gate be on the same system?
- • Do you own the property or rent it?
Bidding on a tender?
- ✓ Bidding on a tender for intruder alarms or perimeter detection? Send us the bill of quantities and we prepare a compliance response and datasheets for the equipment we supply
- ✓ No charge when the equipment is supplied through Urban Eye. Company documents, bid security and your installation pricing stay with you
