Camera - Bullet Outdoor

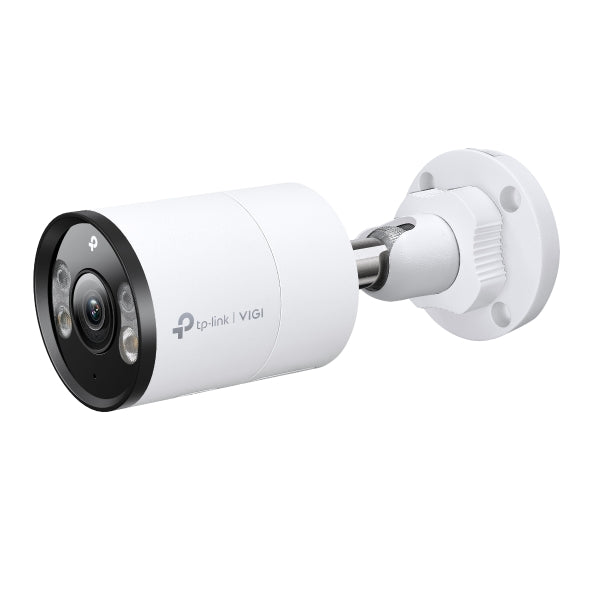

VIGI C345 - 4MP Outdoor Full-Color Bullet Network Camera
- Brand
- TP-Link
- Model
- C345
- Part number
- VIGI-C345-2.8
- Max power draw
- 10.7 W
- Availability
- Ordered on demand
- Datasheet
- Manufacturer specifications ↗
Lens
This choice changes the specification and cannot be changed after ordering. Tell us which you need when you enquire.
Outdoor perimeters, parking lots, warehouse entrances
Request a quoteSpecifications
| Resolution | 4MP (2688x1520) |
|---|---|
| Lens options | 2.8mm, 4mm, 6mm |
| Night vision | Full colour, white light and IR up to 30m |
| Smart features | People & Vehicle Analytics |
| Power | PoE 802.3af/at max 10.7W; 12V DC max 9.7W |
| Protection | IP67 |
| Operating temperature | -30°C to 60°C |
| Audio | Built-in microphone and speaker |
| Storage | microSD up to 512GB |
| Compression | H.265+ |
What this is for
Full colour at night down to 0.005 lux from an F1.6 aperture, with two white LEDs and two infrared LEDs each reaching 30 metres, recording 2688 x 1520. Human and vehicle classification separates people and vehicles from the moving vegetation that generates most false alerts, and a built-in speaker lets the camera answer an intrusion with an audible warning and a flashing light.
IP67 rated for exterior walls and gates, with a microSD slot up to 512GB so recording survives a network cut. Draws up to 10.7 watts over PoE, so thirteen fill a 140 watt recorder. Choose 2.8mm at 100 degrees, 4mm at 80.4 degrees, or 6mm at 52.7 degrees to concentrate detail further down a driveway.
What you also need
This item is part of a system. A working installation needs each of these.
- ✓ A PoE port on a VIGI recorder or an 802.3af/at PoE switch
- ✓ Cat6 cable, up to 100 metres per run
- ✓ A free recorder channel, with enough PoE budget left for this camera's draw
