Camera - Turret IR High PoE

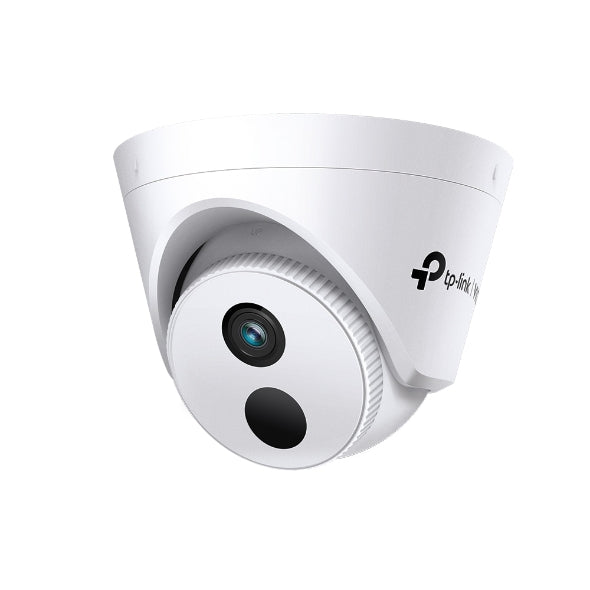

VIGI C400HP - 3MP Turret IR Network Camera (H.265+)
- Brand
- TP-Link
- Model
- C400HP
- Part number
- VIGI-C400HP-2.8
- Max power draw
- 3.0 W
- Availability
- Ordered on demand
- Datasheet
- Manufacturer specifications ↗
Lens
This choice changes the specification and cannot be changed after ordering. Tell us which you need when you enquire.
Premium installations, powered environments, enterprise facilities
Request a quoteSpecifications
| Resolution | 3MP (2304x1296) |
|---|---|
| Lens options | 2.8mm, 4mm |
| Night vision | IR up to 30m |
| Smart features | Motion Detection, Line-crossing, Area Intrusion, Video Tampering Detection |
| Video enhancement | Smart IR, WDR, 3D DNR |
| Power | PoE 802.3af/at max 3W; 12V DC max 2.4W |
| Compression | H.265+ |
What this is for
The same 3MP turret as the C400P with H.265 and H.265+ encoding in place of H.264, which roughly halves the storage a given retention period consumes. At 3 watts over PoE it remains the lightest load in the range on a recorder's power budget.
Despite the naming, this is not a higher-power variant: TP-Link publishes identical PoE figures of 3 watts for both the P and HP versions, and the documented difference between them is the codec. Also note that TP-Link publishes no weatherproof rating for this model anywhere, including their own datasheet, and omits the word outdoor from its name, so treat it as an interior camera. Optics differ by hardware version, so confirm which you are shipping: earlier units give 92 degrees at 4mm, later ones 82.5 degrees.
What you also need
This item is part of a system. A working installation needs each of these.
- ✓ A PoE port on a VIGI recorder or an 802.3af/at PoE switch
- ✓ Cat6 cable, up to 100 metres per run
- ✓ A free recorder channel, with enough PoE budget left for this camera's draw
