Systems by site / Warehouse and godown security scope
System scope
Warehouse and godown security scope
Distribution warehouses and godowns in a walled compound, occupied by one business, bonded or not

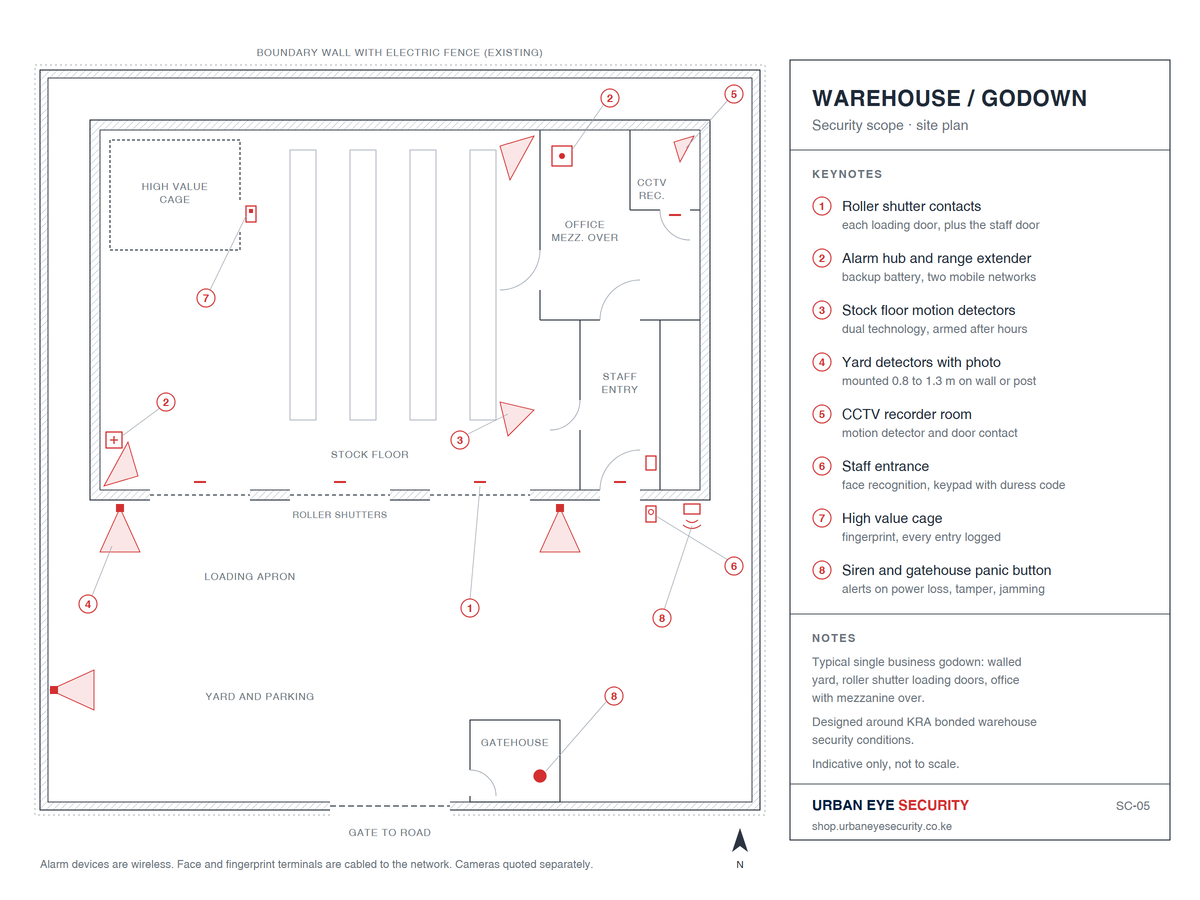

Tap to open full size
What this system protects
A security scope for a single business warehouse or godown in a walled compound, the kind let in Industrial Area and along Baba Dogo Road with guards, an electric fence, a loading yard, roller shutter doors and a small office or mezzanine. It covers the yard and loading doors after hours, the stock floor, the high value cage, and who comes in through the staff entrance during the day.
Two Kenyan cases shape it. In February 2025 thieves took goods worth Sh23.8 million from an Industrial Area warehouse. And at a container freight station godown in Changamwe, police say the thieves broke into the CCTV control room, took the recorder and tampered with the main electricity switch before the break in. So this scope does not rely on the cameras or the mains. The alarm hub has its own backup battery and reports over two mobile networks, and it tells your guards and whoever monitors the alarm when mains power is lost, a device is tampered with or the radio is jammed.
Three decisions shape the design. Roller shutters are the real doors of a godown, so each shutter gets a contact wired into an Ajax door detector, the connection Ajax documents for roller shutters. The yard is covered by outdoor detectors that send a photo with the alarm, so whoever responds can see whether it is a person before they go out. And the room holding the CCTV recorder gets its own detector and door contact, so the first thing a thief goes for raises the alarm.
During the day, the staff entrance opens by Suprema face recognition rather than fingerprint, because warehouse hands are often dusty or gloved, and the high value cage opens by fingerprint with every entry logged by name and time. Cameras are quoted as a separate line and pair with our Enterprise Logistics 32 camera kit. For a bonded warehouse, KRA requires CCTV covering the entire facility and accessible to KRA, and we plan the camera side around that on the survey. No prices appear on this site. Book a free site survey or send your site plan, and we quote the whole scope in writing, including what is not included.
This scope is designed around the security conditions in KRA's procedure for licensing a bonded warehouse. It does not by itself get a warehouse licensed; that is decided by KRA.
What this scope covers
- ✓ Loading doors and roller shutters after hours
- ✓ The stock floor and mezzanine
- ✓ The yard and loading apron
- ✓ The CCTV recorder room
- ✓ The staff entrance and the high value cage during the day
What is included

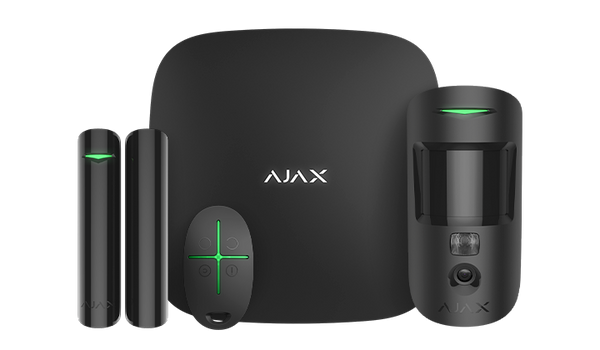

- ✓ Wireless alarm hub with a built in backup battery, on two mobile networks and a fixed connection, reporting to Urban Eye PRO Monitoring, your own security firm, or named phones
- ✓ Range extender so detectors at the far end of the floor and in the gatehouse stay in reach
- ✓ A roller shutter contact on each loading door, wired into an Ajax door detector set to the roller shutter input
- ✓ Opening contacts on personnel doors and the office
- ✓ Dual technology motion detection across the stock floor after hours
- ✓ Outdoor motion detectors with photo verification along the yard and loading apron
- ✓ A motion detector and door contact in the room holding the CCTV recorder
- ✓ Alerts when mains power is lost, a device is tampered with or the radio is jammed
- ✓ Outdoor siren on the building and a panic button in the gatehouse
- ✓ Keypad at the staff entrance with personal codes and a duress code
- ✓ Suprema face recognition terminal at the staff entrance, sited out of direct sun
- ✓ Suprema fingerprint terminal on the high value cage or store office, with every entry logged by name and time
- ✓ Door hardware set for each controlled door: lock, bracket, power supply with battery, exit button and break glass
- ✓ Arming schedules, user codes, face and fingerprint enrolment, and handover training for the manager and guards
What is not included
Listed here so it does not appear as an extra cost later.
- ✕ CCTV cameras and recorder, quoted as a separate line
- ✕ The boundary wall, electric fence and energiser
- ✕ Floodlights and yard lighting
- ✕ Guards, and monitoring and response, quoted separately: Urban Eye PRO Monitoring, or a contract with your own security firm
- ✕ KRA licensing, electronic seals and any KRA remote viewing arrangement
- ✕ Firefighting equipment
- ✕ Turnstiles, boom barriers and weighbridge systems
- ✕ Civil work, trenching, chasing and making good
- ✕ Mains electrical work and surge protection
- ✕ A computer for the Suprema management software, if you do not already have one
What you get at handover
When we install, this is what you receive before we call the job finished.
- ✓ Every detector and shutter contact walk tested with your guards and the monitoring centre or your security firm on the line, with a signed test record
- ✓ Mains power loss and tamper alerts tested in front of the manager
- ✓ Zone and door schedule, with the model and serial number of every device
- ✓ Training for the manager and guards on arming, the panic button, the duress code and reading the entry log
- ✓ 12 months workmanship warranty on our installation from the date of commissioning, in addition to the manufacturer warranty on the equipment
- ✓ Optional service and maintenance after the first year, quoted separately
What the quote assumes
If any of these do not match your site, tell us and the scope changes. None of them are dealbreakers, they change the quantity.
- • One business occupies the warehouse and controls the compound gate
- • Steel roller shutters with a floor or guide where a shutter contact can be fixed within 3 m of the door detector
- • Mains power at the gatehouse, the office and the staff entrance
- • Mobile coverage from at least one network, confirmed on site
- • A network cable can run from the office to the staff entrance and the cage
- • Detectors are mounted at the heights Ajax specifies, not at roof height; yard detectors sit 0.8 to 1.3 m high on a wall or post
- • Installation can be done in phases so loading keeps running
What we will ask you
Have these ready and we can usually quote without a site visit.
- • Is the warehouse bonded, or planning to apply to KRA?
- • How many roller shutters and personnel doors are there?
- • What is the floor area, and is there a mezzanine or racking that blocks sight lines?
- • Is there a caged or locked area for high value stock?
- • How many staff come in each shift, and do contract loaders come in too?
- • Should alarms go to Urban Eye PRO Monitoring, to your own security firm, or only to named phones?
- • Does your electric fence energiser have an alarm output?
- • Do you already have CCTV, and where is the recorder kept?
- • Does loading happen at night?
Bidding on a tender?
- ✓ Tendering for a warehouse fit out, or answering a client, insurer or KRA security requirement? Send us the specification and we prepare the compliance response, datasheets and bill of quantities for the equipment we supply
- ✓ No charge when the equipment is supplied through Urban Eye. Company documents, bid security and your installation pricing stay with you
