Camera - Turret IR

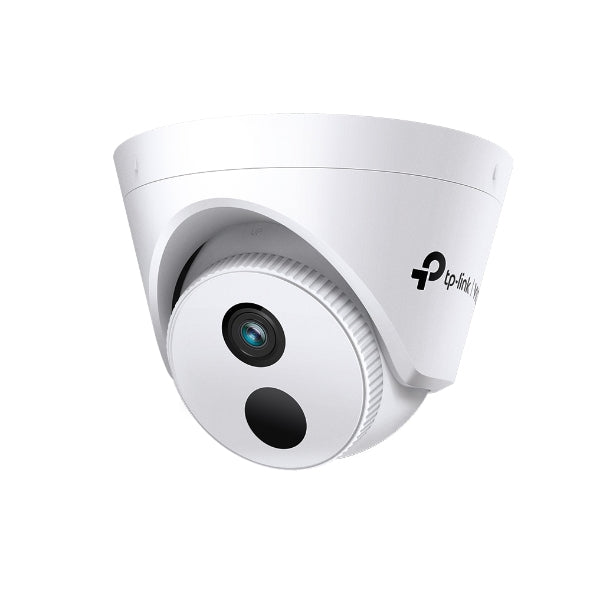

VIGI C400P - 3MP Turret IR Network Camera (H.264)
- Brand
- TP-Link
- Model
- C400P
- Part number
- VIGI-C400P-2.8
- Max power draw
- 3.0 W
- Availability
- Ordered on demand
- Datasheet
- Manufacturer specifications ↗
Lens
This choice changes the specification and cannot be changed after ordering. Tell us which you need when you enquire.
Indoor facilities, covered areas, discreet monitoring
Request a quoteSpecifications
| Resolution | 3MP (2304x1296) |
|---|---|
| Lens options | 2.8mm, 4mm |
| Night vision | IR up to 30m |
| Smart features | Motion Detection, Line-crossing, Area Intrusion, Video Tampering Detection |
| Video enhancement | Smart IR, WDR, 3D DNR |
| Power | PoE 802.3af/at max 3W; 12V DC max 2.4W |
| Operating temperature | -30°C to 60°C |
| Compression | H.264+ |
What this is for
The lowest power draw in the range at 3 watts over PoE, recording 2304 x 1296 with infrared to 30 metres. Where a recorder's power budget is the binding constraint on how many cameras you can fit, this is the camera that fits.
Two limitations to weigh before specifying it. TP-Link publishes no weatherproof rating for this model on any of their regional pages or datasheets, and pointedly omits the word outdoor from its name, so treat it as an interior camera. And it encodes in H.264 only, which consumes roughly twice the storage of the H.265 models for the same retention period. The C400HP is the same camera with H.265 encoding. Choose 2.8mm at 105 degrees or 4mm at 92 degrees.
What you also need
This item is part of a system. A working installation needs each of these.
- ✓ A PoE port on a VIGI recorder or an 802.3af/at PoE switch
- ✓ Cat6 cable, up to 100 metres per run
- ✓ A free recorder channel, with enough PoE budget left for this camera's draw
