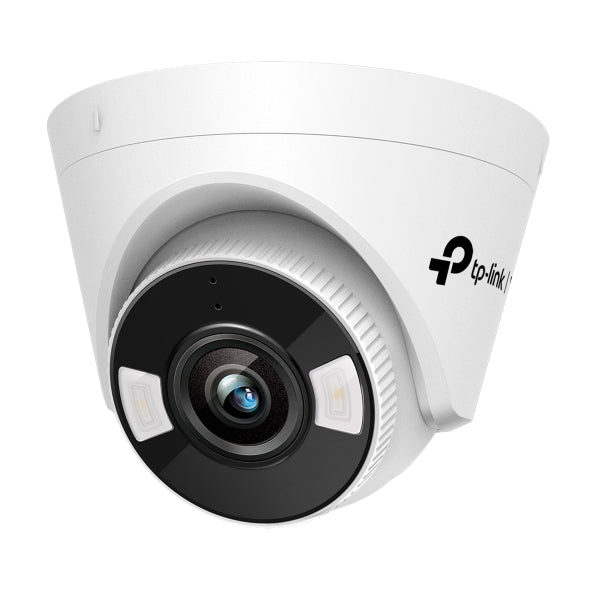

VIGI C440 - 4MP Full-Color Turret Network Camera

Camera - Turret

VIGI C440 - 4MP Full-Color Turret Network Camera

Brand
TP-Link
Model
C440
Part number
VIGI-C440-2.8
Max power draw
8.0 W
Availability
Ordered on demand

Lens

2.8mm LensVIGI-C440-2.8 4mm LensVIGI-C440-4

This choice changes the specification and cannot be changed after ordering. Tell us which you need when you enquire.

Entry points, hallways, perimeter monitoring

Request a quote

Specifications

Resolution 4MP (2560x1440)
Lens options 2.8mm, 4mm
Night vision Full colour, white light and IR up to 30m
Smart features Smart Detection (Motion, Line-crossing, Area Intrusion)
Video enhancement WDR, 3D DNR
Power PoE 802.3af/at max 8W; 12V DC max 7W
Operating temperature -30°C to 60°C
Audio Built-in microphone and speaker, two-way
Storage microSD up to 256GB
Compression H.265+

What this is for

Full colour around the clock instead of grainy black and white, from an F1.6 aperture and a high sensitivity sensor, with two white LEDs and two infrared LEDs each reaching 30 metres on motion detection. Records 2560 x 1440 with H.265+ encoding, and a built-in speaker and microphone give two-way audio.

Read this before mounting it outside. TP-Link publishes no weatherproof rating for this camera: the protection row on their own specification and on the datasheet reads not applicable, and the housing is listed as plastic. Treat it as an interior camera, for ceilings, retail floors, reception counters and covered areas, and use an IP67 model such as the C345 or C350 for any exposed position.

Draws 8 watts over PoE. Lens angle and microSD capacity differ between hardware revisions, so confirm which version you are receiving: the 4mm lens is published at 79 degrees on one revision and 86 degrees on another.

What you also need

This item is part of a system. A working installation needs each of these.

  • ✓ A PoE port on a VIGI recorder or an 802.3af/at PoE switch
  • ✓ Cat6 cable, up to 100 metres per run
  • ✓ A free recorder channel, with enough PoE budget left for this camera's draw
